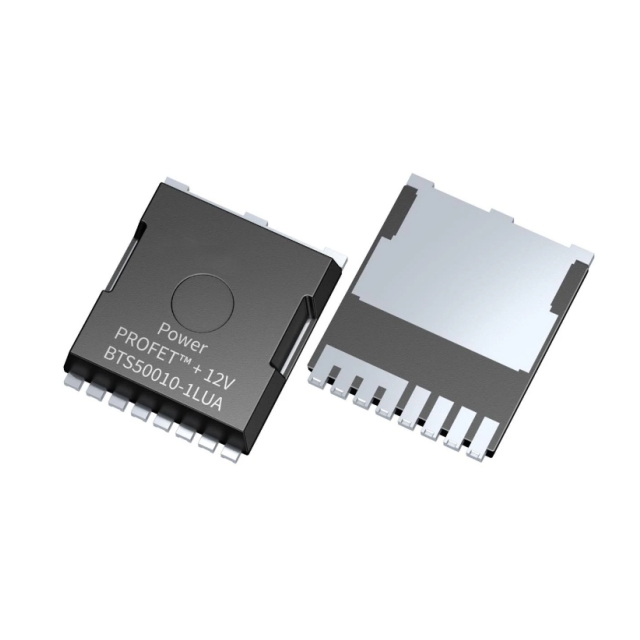

The BTS500101LUA is a 1.0 mΩ single-channel intelligent high-side power switch in an 8-pin TO leadless package with protection and diagnostic features. It has a reverse conduction function to protect the device in case of reverse polarity (reverse battery). The power transistor is built from an N-channel power MOSFET with charge pump. It is designed to drive high current loads up to 42 A for applications such as heaters, glow plugs, fans and pumps in harsh automotive environments.

Functionality

● PRO-SIL™ ISO 26262-ready, which supports integrators in assessing hardware components for compliance with ISO 26262:2018 clause 8-13

● Single-channel devices

● Low standby current

● Reverse turn-on protection to reduce power consumption in case of reverse battery operation

● Ground protection

● Electrostatic discharge protection (ESD)

● Optimised electromagnetic compatibility (EMC)

● Crank pulse compatible

● Integrated diagnostic functions

● Integrated protection functions

● Green product (RoHS compliant)

Applications

● For resistive, inductive, and capacitive loads

● Replaces electromechanical relays, fuses, and discrete circuits

● Ideal for high-current load applications such as heating systems, fans, and pumps

● Low frequency PWM applications
