The TPS54340BQDDAQ1 is a 42V, 3.5A buck regulator with an integrated high-side MOSFET. The device can withstand load throw pulses up to 45V per ISO 7637, and current mode control provides simple external compensation and flexible component selection. A low ripple pulse hopping mode reduces the no load supply current to 146µA, and when the enable pin is pulled low, the shutdown supply current is reduced to 1µA.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 4.5V

Voltage - Input (Max): 42V

Voltage - Output (Min/Fixed): 0.8V

Voltage - Output (Max): 41.1V

Current - Output: 3.5A

Frequency - Switch: 100kHz ~ 2.5MHz

Synchronous Rectifier: None

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

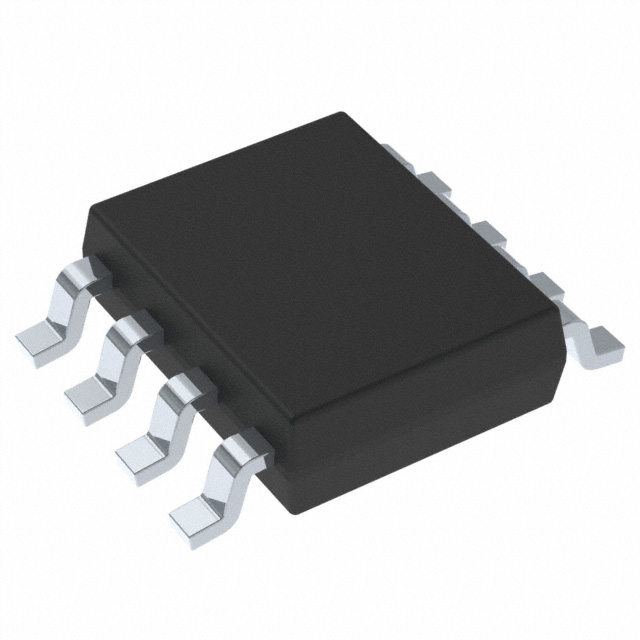

Package/Case: 8-PowerSOIC (0.154", 3.90mm Width)

Supplier Device Package: 8-SO-PowerPad

Applications

● Vehicle accessories: GPS, entertainment, ADAS, eCall

● USB dedicated charging ports and battery chargers

● Industrial automation and motor control

● 12 V and 24 V industrial, automotive and communications power systems
