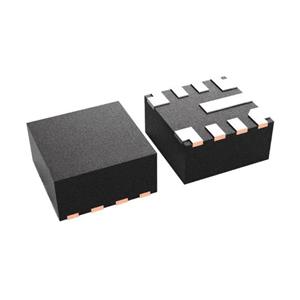

The LMR43610MB3RPER synchronous step-down regulator is a small 36V, 2A and 1A synchronous step-down DC/DC converter in a 2mm × 2mm HotRod package. This easy-to-use converter supports a wide input voltage range of 3.0 V to 36 V with transients up to 42 V. Designed to meet low standby power requirements, it is suitable for always-on automotive applications. Auto mode supports frequency foldback during light load operation, allowing 1.5µA no-load current consumption at 13.5V input voltage (VIN).

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable (Fixed)

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 36V

Voltage - Output (Min/Fixed): 1V (3.3V)

Voltage - Output (Max): 18V

Current - Output: 1A

Frequency - Switch: 200kHz ~ 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount, Wettable Sides

Package/Housing: 9-VFQFN

Supplier Device Package: 9-VQFN-HR (2x2)

Applications

● Advanced driver assistance systems (radar ECU)

● Infotainment systems and clusters (head units, emergency calls)

● Body electronics and lighting

● Factory automation

● Field transmitters and process sensors

● Building automation

● HVAC and fire safety

● Electrical Appliances

● Gardening and power tools
