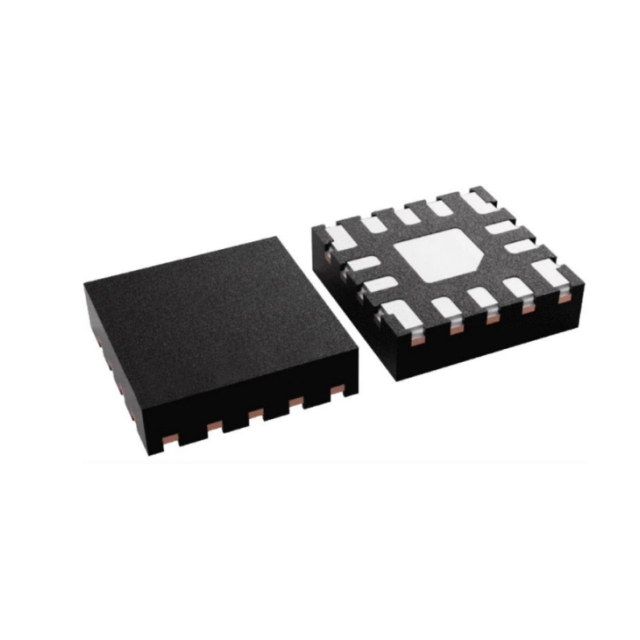

The LMQ66410MC5RXBRQ1 Synchronous Buck Converter is a 36V, 3A (2A and 1A models available) synchronous buck dc/dc converter with integrated bypass and bootstrap capacitors built in. The devices are available in an enhanced HotRod™ QFN package. The easy-to-use converters support a wide input voltage range of 2.7V to 36V (start-up or post-operation) with transients up to 42V and are designed to meet the low standby power requirements of normally open industrial applications. Auto mode enables frequency foldback at light loads, 1.5µA no-load current consumption at 13.5VIN and high light-load efficiency.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable (Fixed)

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 36V

Voltage - Output (Min/Fixed): 1V (5V)

Voltage - Output (Max): 18V

Current - Output: 1A

Frequency - Switch: 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount, Wettable Sides

Package/Housing; 14-PowerTFQFN

Supplier Device Package: 14-VQFN (2.6x2.6)

Applications

● Factory automation: PLCs, DCSs and PACs

● Test and Measurement

● Medical

● Aerospace & Defence
