The CC430F6126IRGCR combines the outstanding performance of the advanced CC1101 sub-1GHz RF transceiver with the MSP430 CPUXV2 in a microcontroller system-on-chip configuration, providing up to 32KB of in-system programmable Flash, up to 4KB of RAM, two 16-bit timers, a 10-bit high-performance ADC with eight external inputs and multiple internal temperature and battery sensors, a comparator, USCI, a 128-bit AES security accelerator, a hardware multiplier, DMA, an RTC module with alarms, an LCD driver, and more. A 10-bit high-performance ADC with eight external inputs and multiple internal temperature and battery sensors, a comparator, USCI, a 128-bit AES security accelerator, a hardware multiplier, DMA, an RTC module with alarms, an LCD driver, and up to 44 I/O pins.

Product Attributes

Type: TxRx + MCU

RF Family/Standard: General Purpose ISM < 1GHz

Modulation: 2FSK, 2GFSK, ASK, MSK, OOK

Frequency: 300MHz ~ 348MHz, 389MHz ~ 464MHz, 779MHz ~ 928MHz

Data Rate (Max): 500kBaud

Power - Output: 13dBm

Sensitivity: -117dBm

Storage Capacity: 32kB Flash, 2kB SRAM

Serial Interfaces: I²C, IrDA, JTAG, SPI, UART

GPIO: 44

Voltage - Supply: 2V ~ 3.6V

Current - Receive: 15mA ~ 18.5mA

Current - Transmit: 15mA ~ 36mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

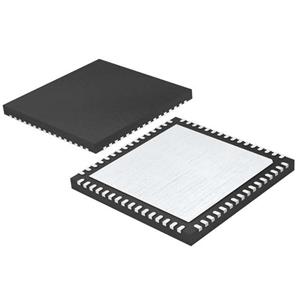

Package/Shell: 64-VFQFN Exposed Pad

Supplier Device Package: 64-VQFN (9x9)

Applications

- Wireless analogue and digital sensor systems

- Heat distribution meters

- Thermostats

- AMR and AMI meters

- Smart Grid Wireless Networks
