The CC2620F128RSMR device is a wireless microcontroller (MCU) primarily suited for ZigBee®RF4CE remote control applications involving a controller and a target node. This device is part of the SimpleLink™ CC26xx family of cost-effective, ultra-low power 2.4GHz RF devices. Its extremely low active RF and MCU currents, as well as low-power mode current consumption, ensure excellent battery life and are suitable for use with small coin cell batteries and in energy harvesting applications.

Product Specifications

Type: TxRx + MCU

RF Family/Standard: 802.15.4

Protocol: Zigbee

Frequency: 2.4GHz

Data Rate (Max): 250kbps

Power - Output: 0dBm

Sensitivity: -100dBm

Storage: 128kB Flash, 28kB SRAM

Serial Interfaces: I²C, I²S, SPI, UART

GPIO: 10

Voltage - Supply: 1.8V ~ 3.8V

Current - Receive: 5.9mA ~ 6.1mA

Current - Transmit: 6.1mA ~ 9.1mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

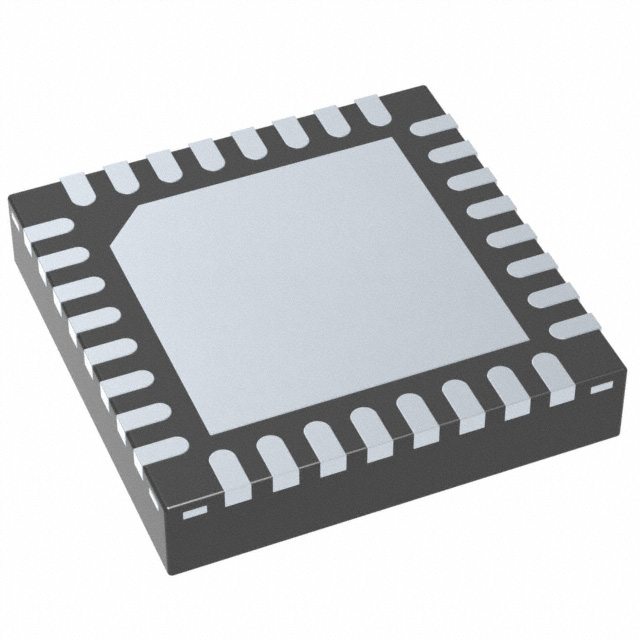

Package/Shell: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (4x4)

Applications

- Remote Control

- Set-Top Boxes

- Television (TV)

- Media Player

- DVD

- Internet TV (OTT)

- Consumer Electronics

- HID Applications
