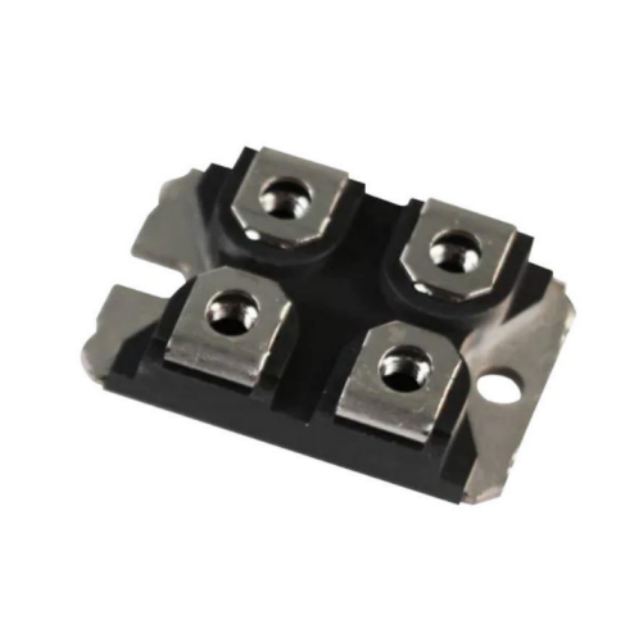

APTMC120AM20CT1AG Silicon Carbide (SiC) modules integrate powerful arrays or technologies into a package optimised for increased reliability and efficiency, space savings, and reduced assembly time. The off-the-shelf standard module product line covers a wide range of circuit topologies, semiconductor products including SiC, voltage and current ratings, and packages. Unique requirements can be met with Application Specific Power Modules (ASPM®).

Product Attributes

Technology: Silicon Carbide (SiC)

Configuration: 2 N-channel (phase angle)

Drain-Source Voltage (Vdss): 1200V (1.2kV)

Current at 25°C - Continuous Drain (Id): 143A (Tc)

On-resistance (max) at different Id, Vgs: 17 milliohms @ 100A, 20V

Vgs(th) at varying Id (max): 2.3V @ 2mA (Std)

Gate Charge (Qg) at varying Vgs (max): 360nC @ 20V

Input capacitance (Ciss) at varying Vds (max): 5960pF @ 1000V

Power - Max: 600W

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: SP1

Supplier Device Package: SP1

Applications

● Soldering

● Solar energy

● Induction heating

● Medical equipment

● UPS

● Motor Control

● Switch-mode power supplies

● Defence and aerospace
