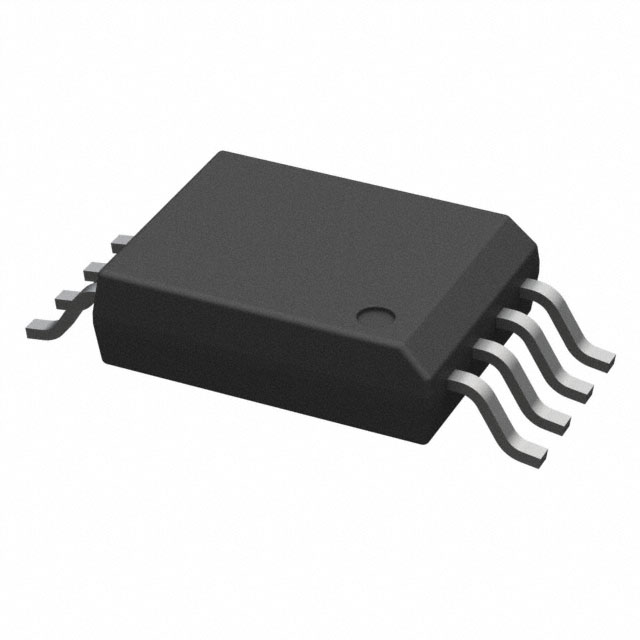

AMC1300BDWV is a precision, isolated amplifier with an output separated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference.

Product Features

±250mV input voltage range optimized for current measurement using shunt resistors

Fixed gain: 8.2

Low DC errors:

• Offset error: ±0.2 mV (maximum)

• Offset drift: ±0.9 µV/°C (maximum)

• Gain error: ±0.3% (maximum)

• Gain drift: ±30 ppm/°C (maximum)

3.3V operation on high-side (AMC1300B)

High CMTI: 100 kV/µs (minimum) (AMC1300B)

Low EMI, meets CISPR-11 and CISPR-25 standards

System-level diagnostic features

Applications

Shunt-resistor-based current sensing in:

– Motor drives

– Frequency inverters

– Uninterruptible power supplies
