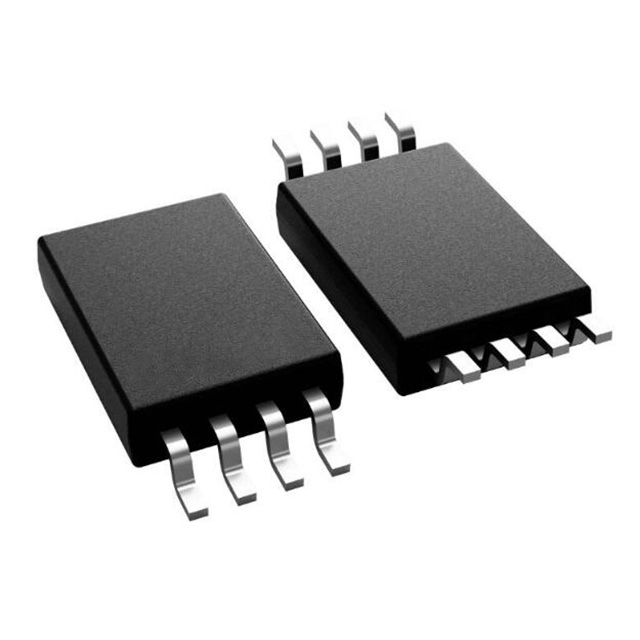

OPA2991QPWRQ1 is Automotive, 40-V Rail-to-Rail Input or Output, Low Offset Voltage, Low Noise Op Amplifiers. It offer exceptional DC precision and AC performance, including rail-to-rail input or output, low offset (±125 µV, typical), low offset drift (±0.3 µV/°C, typical), low noise (10.8 nV/√Hz and 1.8 µVPP), and 4.5MHz bandwidth.

Product Attributes

Low offset voltage: ±125 µV

Low offset voltage drift: ±0.3 µV/°C

Low noise: 10.8 nV/√Hz at 1 kHz

High common-mode rejection: 130 dB

Low bias current: ±10 pA

Rail-to-rail input and output

Wide bandwidth: 4.5 MHz GBW

High slew rate: 21 V/µs

High capacitive load drive: 1 nF

Low quiescent current: 560 µA per amplifier

Wide supply: ±1.35 V to ±20 V, 2.7 V to 40 V

Robust EMIRR performance: EMI/RFI filters on input and supply pins

Applications

Infotainment and cluster

Passive safety

Body electronics and lighting

HEV/EV inverter and motor control

On-board (OBC) and wireless charger

Powertrain current sensor

Advanced driver assistance systems (ADAS)

High-side current sensing
