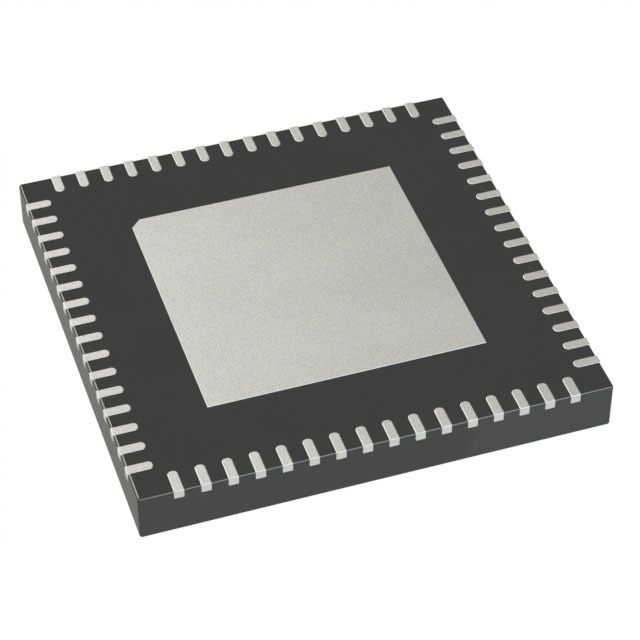

Trade Name:PIC32MK0512MCF064T-I/M
Data Manual:PIC32MK0512MCF064T-I/M.pdf
Brand:Microchip
Particular Year:23+
Package:64-QFN
Delivery Date:New and Original
Stock: 1000pcs
The PIC32MK0512MCF064T-I/M microcontrollers (MCUs) feature a variety of communication peripherals and a rich set of high-performance analogue motor control features.The PIC32MK family consists of two subfamilies: the PIC32MK MC MCUs are targeted at precision dual-axis motor control applications, and the PIC32MK GP MCUs have an integrated serial communication module, making them ideally suited for general purpose applications. applications. All PIC32MK MC and PIC32MK GP devices feature a 120MHz, 32-bit core that supports digital signal processor (DSP) instructions. In addition, dual precision floating-point units are integrated into the MCU cores, enabling developers to use floating-point-based modelling and simulation tools for code development.
Product Attributes
Core Processor: MIPS32® microAptiv™
Core specification: 32-bit single core
Speed: 120MHz
Connectivity: CANbus, IrDA, LINbus, PMP, QEI, SPI, UART/USART, USB OTG
Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, Motor Control PWM, WDT
Number of I/O: 49
Program memory capacity: 512KB (512K x 8)
Programme memory type: Flash
EEPROM Size: 4K x 8
RAM Size: 128K x 8
Voltage - Supply (Vcc/Vdd): 2.2V ~ 3.6V
Data Converter: A/D 27x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package/Housing: 64-VFQFN Exposed Pad
Supplier Device Package: 64-QFN (9x9)
Applications
● Industrial Internet of Things (IIoT)
● Automotive Applications
● Motor Control
● Industrial control
