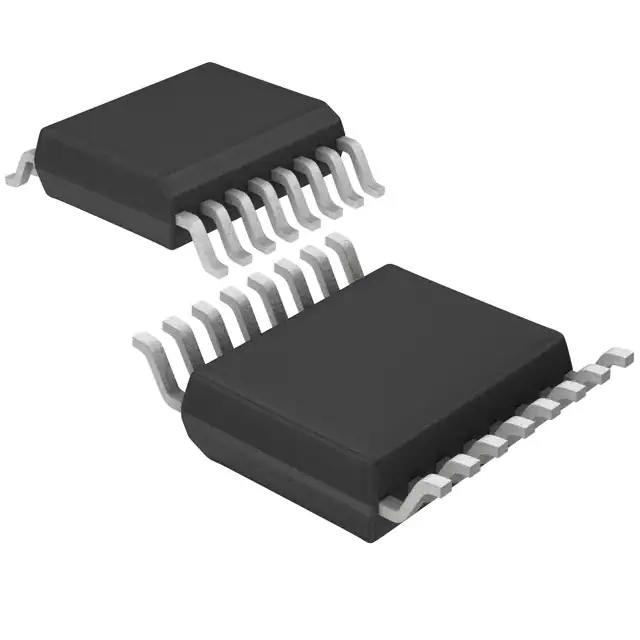

The PCM1753-Q1 family of devices is a CMOS monolithic integrated circuit that includes a stereo digital-to-analog converter and support circuitry in a small 16-lead SSOP package. The data converter uses TI's enhanced multi-stage delta-sigma architecture, which features fourth-order noise shaping and eight-stage amplitude quantization for excellent dynamic performance and improved tolerance to clock jitter. PCM1753-Q1 series devices accept industry standard audio data formats with 16-24 bits of data, providing a convenient interface for audio DSPs and decoder chips. Sample rates of up to 200kHz are supported. A full set of user-programmable functions can be accessed via a three-wire serial control port that supports register writing capabilities.

Product attributes

Type: DAC, Audio

Number of channels: 2

Resolution (bits): 24 b

Sample rate (per second): 200k

Data interface: I²S

Supply voltage source: Single supply

Voltage - supply: 5V

Operating temperature: -40°C ~ 105°C

Mounting Type: Surface Mount

Package/Case: 16-SSOP (0.154", 3.90mm wide)

Supplier device package; 16-SSOP

Applications

- Automotive infotainment systems and clusters

- A/V receivers

- HD TV receivers

- Automotive audio systems

- Other applications requiring 24-bit audio
