Service Telephone:86-755-83294757

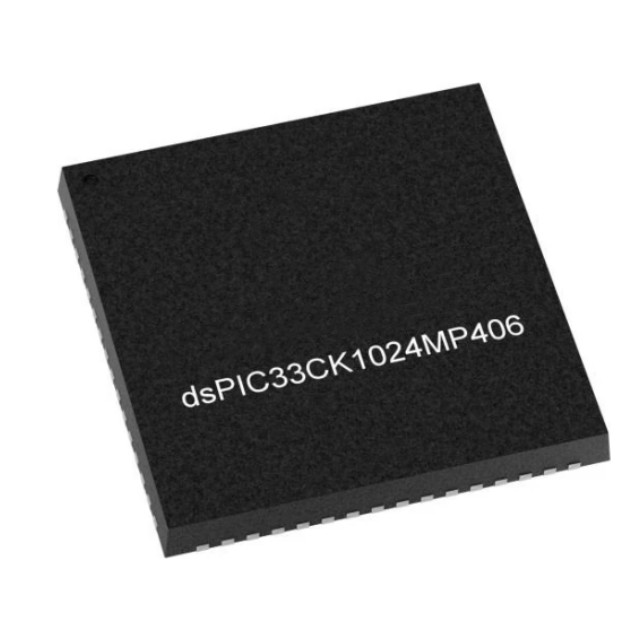

Trade Name:DSPIC33CK1024MP406-I/MR
Data Manual:DSPIC33CK1024MP406-I/MR.pdf
Brand:Microchip
Particular Year:23+
Package:QFN-64
Delivery Date:New and Original
Stock: 1000pcs
The DSPIC33CK1024MP406-I/MR digital signal controller (DSC) features high-resolution PWM and CAN Flexible Data Rate (CAN FD) to provide real-time deterministic performance to support high-performance control applications.
Features
Power Management
Low power management modes: sleep, idle and snooze
Integrated power-on reset and undervoltage reset
High resolution PWM with fine edge layout
Up to 12 PWM channels
250ps PWM resolution
Timer, output compare and input capture
1 general purpose 16-bit timer
Peripheral Trigger Generator (PTG) Modules
8 SCCP modules
Timer, Capture/Compare and PWM Modes
16-bit or 32-bit time base
16-bit or 32-bit Capture
Four-deep capture buffer
Fully asynchronous operation, can operate in sleep mode
9 MCCP/SCCP modules including timer, capture/compare and PWM
1 MCCP
8 SCP
16-bit or 32-bit time base
16-bit or 32-bit capture
Four-deep capture buffer
Advanced Analogue
5 ADC Modules
12-bit 3.5Msps ADCs
Up to 27 conversion channels
250ns conversion delay
6 DAC/Analogue Comparator Modules
12-bit DAC with hardware slope compensation
15ns analogue comparator
Shared DAC/analogue comparator outputs
3 op-amp modules, 20MHz GBW
Oscillation: 40V/s
Offset: ±1mV
Model
Brand
Package
Quantity
Describe
ADI
LQFP-100
2000
16-bit DSP, 80 MIPS, 1.8v, 2 serial ports, host port, 160KB RAM
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
