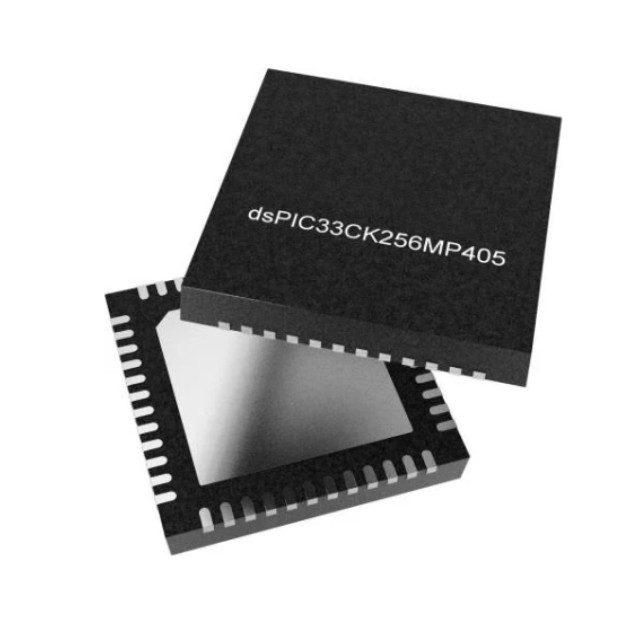

The DSPIC33CK256MP405-I/M7 digital signal controller (DSC) features high-resolution PWM and CAN Flexible Data Rate (CAN FD) to provide real-time deterministic performance to support high-performance control applications.

Features

AEC-Q100 compliant

Operating Conditions

3V to 3.6V, -40°C to +125°C (DC to 100MIPs)

3V to 3.6V, -40°C to +150°C (DC to 70MIPs)

dsPIC33CK CPU

256Kb to 1024Kb programme flash (with ECC) and 128Kb data RAM

Fast six-cycle division

Dual partition flash for LiveUpdate function

LiveUpdate

Code-efficient (C and assembly language) architecture

40-bit wide accumulator

Single-Cycle (MAC/MPY), Dual Data Extraction

Single Cycle, Mixed Symbol MUL plus Hardware Division

Supports 32-bit multiplication

5 Interrupt Scenario Select Registers for fast interrupt response

Zero overhead cycles

RAM memory built-in self-test (MBIST)

Clock management

Fast RC (FRC)

Internal oscillator

Programmable PLL and oscillator clock source

Reference Clock Output

Fail-Safe Clock Monitor (FSCM)

Fast wake-up and start-up

8MHz backup FRC (BFRC) with frequency divider (244 decimals) provides nominal 32.768kHz output with 50% duty cycle
