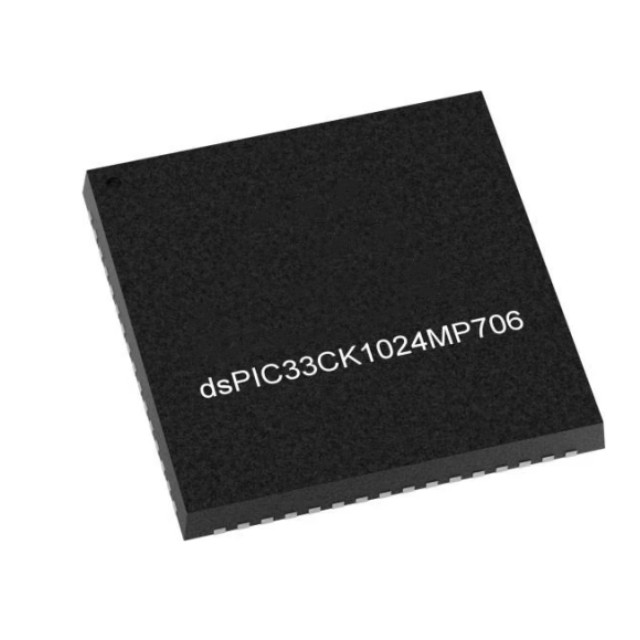

The DSPIC33CK1024MP706-E/MR digital signal controller (DSC) features high-resolution PWM and CAN Flexible Data Rate (CAN FD) to provide real-time deterministic performance to support high-performance control applications.

Features

Power Management

Low power management modes: sleep, idle and snooze

Integrated power-on reset and undervoltage reset

High resolution PWM with fine edge layout

Up to 12 PWM channels

250ps PWM resolution

Timer, output compare and input capture

1 general purpose 16-bit timer

Peripheral Trigger Generator (PTG) Modules

8 SCCP modules

Timer, Capture/Compare and PWM Modes

16-bit or 32-bit time base

16-bit or 32-bit Capture

Four-deep capture buffer

Fully asynchronous operation, can operate in sleep mode

9 MCCP/SCCP modules including timer, capture/compare and PWM

1 MCCP

8 SCP

16-bit or 32-bit time base

16-bit or 32-bit capture

Four-deep capture buffer

Advanced Analogue

5 ADC Modules

12-bit 3.5Msps ADCs

Up to 27 conversion channels

250ns conversion delay

6 DAC/Analogue Comparator Modules

12-bit DAC with hardware slope compensation

15ns analogue comparator

Shared DAC/analogue comparator outputs

3 op-amp modules, 20MHz GBW

Oscillation: 40V/s

Offset: ±1mV
