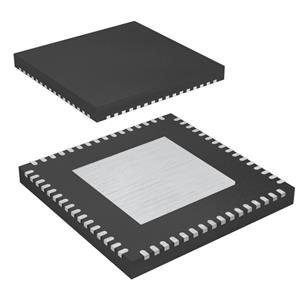

For picture reference, please see the specifications
< >

Commodity Model:KSZ8563RNXI

Trade Name:KSZ8563RNXI

Data Manual:KSZ8563RNXI.pdf

Brand:Microchip

Particular Year:23+

Package:64-VQFN

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
KSZ8563RNXI
Package
64-VQFN
Describe
Ethernet Switch 10/100 Base-T PHY MII, RMII, RGMII Interface

Product Description

KSZ8563RNXI is a highly-integrated, IEEE 802.3 compliant networking device. It incorporates a layer-2+ managed high-performance Ethernet switch, two 10BASE-T/100BASE-TX physical layer transceivers (PHYs) and associated MAC units, and one MAC port with a configurable RGMII/MII/RMII interface for direct connection to a host processor/controller, another Ethernet switch, or an Ethernet PHY transceiver.


Highlights

Non-blocking wire-speed Ethernet switching fabric

Full-featured forwarding and filtering control, including Access Control List (ACL) filtering

Full VLAN and QoS support

Two ports with integrated 10/100BASE-T PHYs

One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface

EtherSynch® IEEE 1588v2 Precision Time Protocol (PTP)

IEEE 802.1X port-based authentication support

EtherGreen™ power management features,including low power standby and IEEE 802.3az

Flexible management interface options: SPI, I2C,MIIM, and in-band management via any port

Industrial temperature range support

Automotive AEC-Q100 Grade 2 Qualified(-40oC to +105oC)

64-pin VQFN (8 x 8mm) lead-free package


Features

Switch Management Capabilities

One Configurable External MAC Port

Two Robust Integrated PHY Ports

Advanced Switch Capabilities

Transparent Clock (TC) with auto correction update

Master and slave Ordinary Clock (OC) support

One-step mode of operation

End-to-end (E2E) or peer-to-peer (P2P)

PTP multicast and unicast message support

Comprehensive Configuration Registers Access

Energy detect power-down mode on cable disconnect

Dynamic clock tree control

Unused ports can be individually powered down

Full-chip software power-down

Wake-on-LAN (WoL) standby power mode


Applications

Automotive Ethernet

Industrial Ethernet (Profinet, MODBUS, Ethernet/IP)

Real-time Ethernet networks

Industrial control/automation switches

Networked measurement and control systems

Test and measurement equipment
