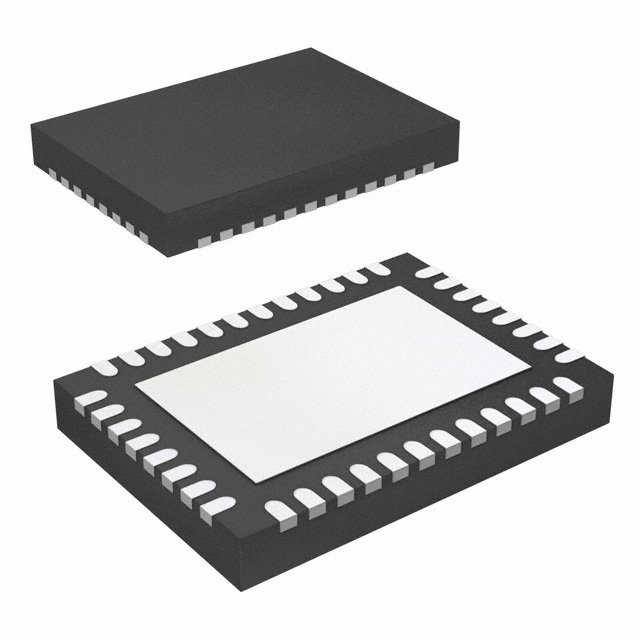

The DRV8714HQRHARQ1 is a highly integrated multi-channel gate driver. Multi-channel gate drivers for driving multiple motors or loads. These devices integrate four half-bridge gate drivers, driver power supplies, current shunt amplifiers, and protection monitors to reduce total system complexity, size, and cost. The intelligent gate driver architecture manages dead time to prevent breakdown, controls slew rate to reduce EMI, and optimises propagation delay for best performance.

Features

● Compliant with AEC-Q100 for automotive applications

● Temperature class 1 TA: -40°C to +125°C

● Multi-channel half-bridge gate driver

● Pin-to-pin 4 and 8 half-bridge driver models

● Operating voltage range: 4.9V to 37V (40V absolute maximum)

● 4 PWM inputs with output mapping

● Triple-frequency charge pump for 100% PWM

● Half-bridge, H-bridge and SPI control modes

● Intelligent multi-stage gate drive architecture

● Adjustable slew rate control

● Adaptive propagation delay control

● Peak pull current output: 50µA to 62mA

● Peak sink current output: 50µA to 62mA

● Integrated dead-time handshake

Applications

● Automotive brushed DC motors

● Power seat modules

● Electric boot and liftgate

● Door control modules

● Body control modules

● Electric sunroof

● Transmission and engine control modules
