The NCP51810AMNTWG high-speed gate drivers are designed to meet the stringent requirements of driving enhanced mode (e-mode), high load Advanced level shifting technology with short matching propagation delays to provide -3.5 VDC. Advanced level shifting technology to provide a common mode voltage range of -3.5 V to +150 V (typical), and a common mode voltage range of -3.5 V to +3.5 V. In addition, the device provides stable dV/dt operation with two driver output stages rated up to 200 V/ns of stable dV/dt operation.

Product Attributes

Driver Configuration: Half Bridge

Channel Type: Single

Number of drivers: 1

Gate Type: N-Channel MOSFETs

Voltage - Supply: 9V ~ 17V

Current - Peak Output (sink, pull-out): 1A, 2A

Input Type: Non-Inverting

High Side Voltage - Maximum (Bootstrap): 150 V

Rise/Fall Time (typical): 2ns, 1.5ns

Operating temperature: 150°C (TJ)

Mounting Type: Surface Mount

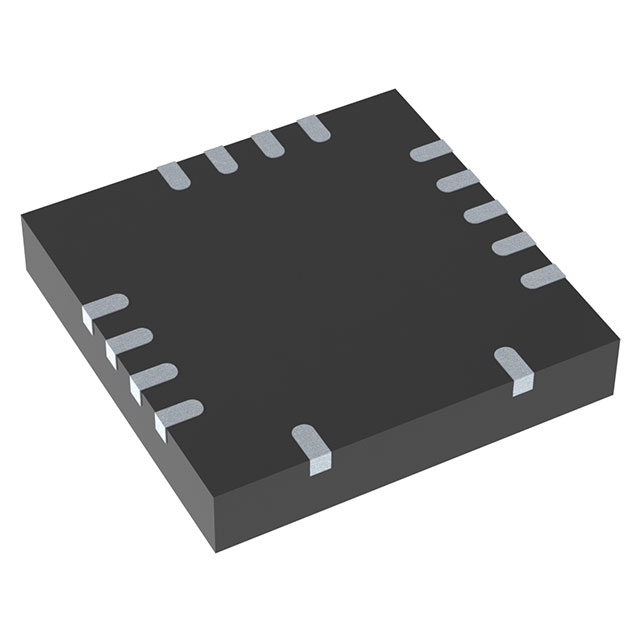

Package/case: 15-VFQFN

Supplier device package: 15-QFN (4x4)

Applications

● Driving GaN power transistors used in full- or half-bridge LLCs, active-clamped flyback or forward and synchronous rectifier topologies

● 48 V to 12 V PoL converters, 48 V to low voltage bus converters, industrial modules
