The UCC27282QDRCRQ1 is a rugged N-channel MOSFET driver with a maximum switching node (HS) voltage rating of 100 V. Its 3-A peak source and sink currents, as well as low pull-up and pull-down resistances, enable it to drive high-power MOSFETs with high stability and reliability. Drives high-power MOSFETs and minimises switching losses during MOSFET conversion, with minimal switching losses during MOSFET Miller High transitions. The UCC27282-Q1 can be used in conjunction with analogue and digital controllers because the input is voltage independent of the supply voltage.

Product Attributes

Drive configuration: Half-bridge

Channel type: Stand-alone

Number of drivers: 2

Gate Type: N-Channel MOSFETs

Voltage - Supply: 5.5V ~ 16V

Logic Voltage - VIL, VIH: 1.3V, 1.9V

Current - Peak Output (Pour In, Pull Out): 2.5A, 3.5A

Input Type: Non-Inverting

Rise/Fall Time (typical): 12ns, 10ns

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

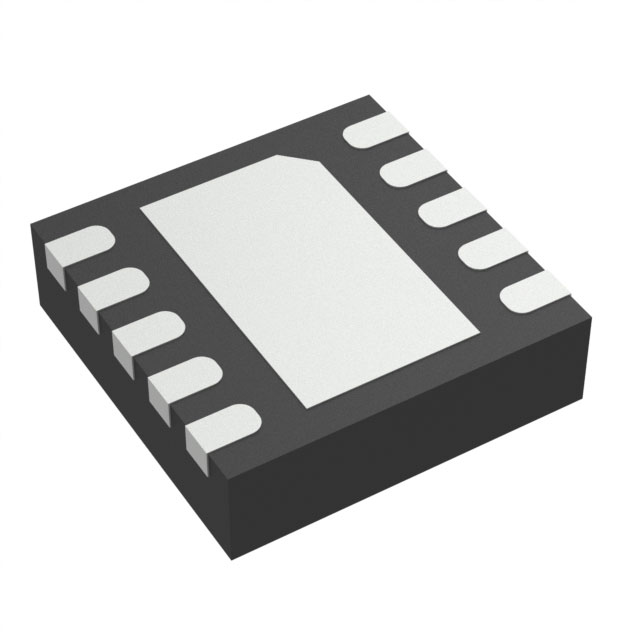

Package/Shell: 10-VFDFN Exposed Pad

Supplier Device Package: 10-VSON (3x3)

Applications

● Automotive DC/DC converters

● Electric power steering

● On-board chargers (OBC)

● Integrated Belt Starter Generator (iBSG)

● Automotive HVAC compressor modules
