The DRV8300DPWRQ1 is a 100V three-phase half-bridge gate driver capable of driving high-side and low-side N-channel power MOSFETs.

Features

- Meets AEC-Q100 for automotive applications

- Temperature Class 1: -40°C ≤ TA ≤ 125°C

- 100V Three-Phase Half Bridge Gate Driver

- Drives N-channel MOSFETs (NMOS)

- Gate driver supply (GVDD): 5-20V

- MOSFET power supply (SHx) supports up to 100V

- Integrated bootstrap diode

- Bootstrap gate driver architecture

- 750mA pull current

- 1.5A sink current

- Supports automotive systems up to 48V

- Low leakage current (less than 55µA) on SHx pin

- Absolute maximum BSTx voltage up to 115V

- Supports negative voltage transients down to -22V on SHx

- Built-in transconductance protection

- Fixed insertion 215 ns dead time

- Supports 3.3V and 5V logic inputs (20V absolute maximum)

- 4ns typical propagation delay matching

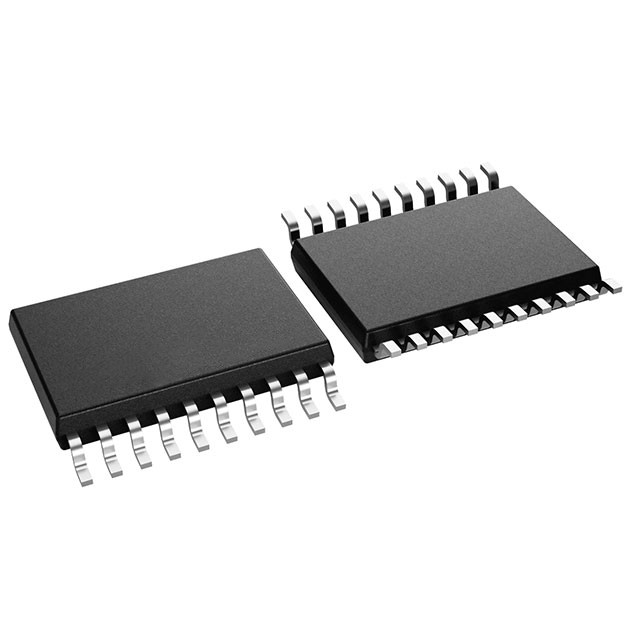

- Compact TSSOP package

- Efficient system design with power block

- Integrated Protection Features

- BST Undervoltage Lockout (BSTUV)

- GVDD Undervoltage (GVDDUV)

Applications

48V automotive and industrial applications

- Electric Bicycles and Electric Vehicles

- Electric Scooters

- Compressors

- HVAC Fans & Blowers

- Automotive Fans and Blowers
