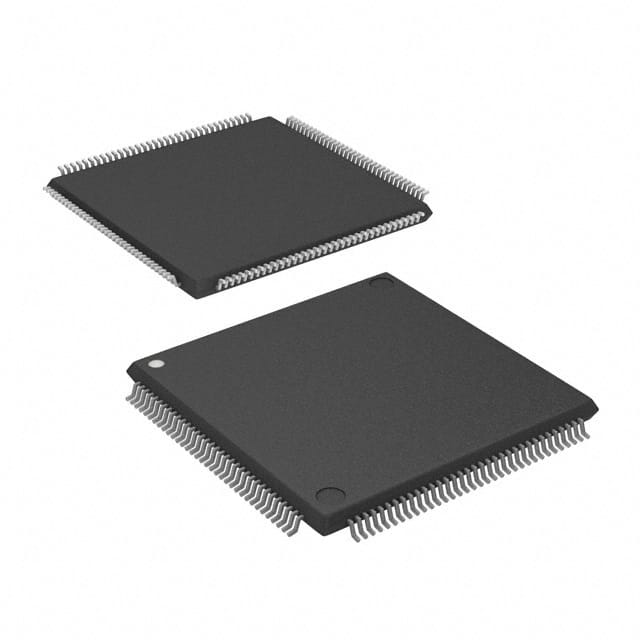

The ATSAM4C32EA-AU 32-bit microcontroller (MCU) is a system-on-chip (SoC) for smart energy applications built on two high-performance Arm® Cortex®-M4 RISC processors. The ATSAM4C32 operates at a maximum speed of 120MHz, with 2MB of embedded flash memory, 304KB of SRAM, and one on-chip cache per core. The dual-ARM Cortex-M4 architecture enables the integration of application, communication, and security functions in a single device, with the ability to extend programs and data storage via a 16-bit external bus interface.

specification

Core processor: ARM® Cortex®-M4/M4F

Kernel specification: 32-bit dual-core

Speed: 120MHz

Connection capability: EBI/EMI, I²C, IrDA, SPI, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, LCD, POR, PWM, WDT

Number of I/ OS: 106

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 304K x 8

Voltage - supply (Vcc/Vdd) : 1.62V ~ 3.6V

Data converter: A/D 8x10b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/housing: 144-LQFP

Supplier Device package: 144-LQFP (20x20)

Basic product number: ATSAM4C

Typical applications include home LAN devices, energy gateways, data concentrators, and smart meters.
