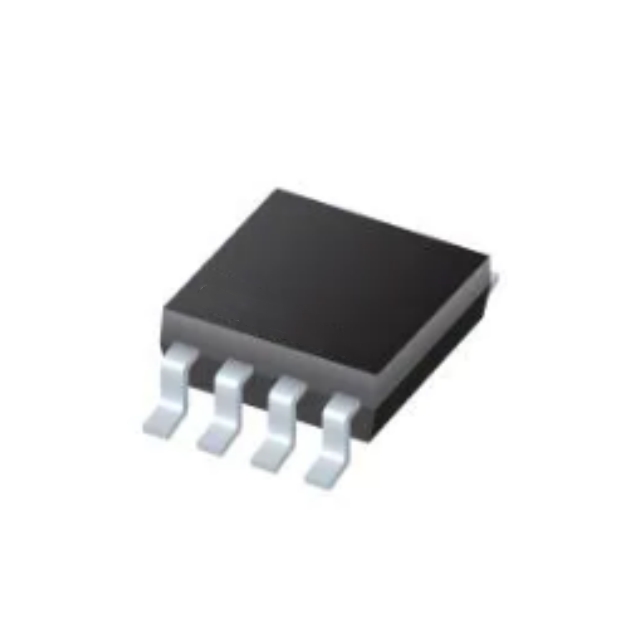

The UCC27624QDGNRQ1 is a dual-channel, high-speed, low-voltage side gate driver that efficiently drives MOSFET, IGBT, SiC and GaN power switches. Typical peak drive power is 5 A, which reduces power switch rise and fall times, lowers switching losses, and improves efficiency. The device's fast propagation delay (17-ns typical) improves the transient performance of power stage efficiency systems through improved dead-time optimisation, pulse-width utilisation, control loop response and transient performance.

Product Attributes

Drive Configuration: Low-end

Channel Type: Standalone

Number of Drivers: 2

Gate Type: N-Channel MOSFETs

Voltage - Supply: 4.5V ~ 26V

Logic Voltage - VIL, VIH: 1.2V, 1.8V

Current - Peak Output (Pour In, Pull Out): 5A, 5A

Input Type: Non-Inverting

Rise/Fall Time (typical): 6ns, 10ns

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package: 8-HVSSOP

Applications

● Automotive DC/DC converters

● Switch-mode power supplies (SMPS)

● Power factor correction (PFC) circuits

● DC/DC converters

● Motor drives

● Solar power supplies

● Pulse transformer drivers
