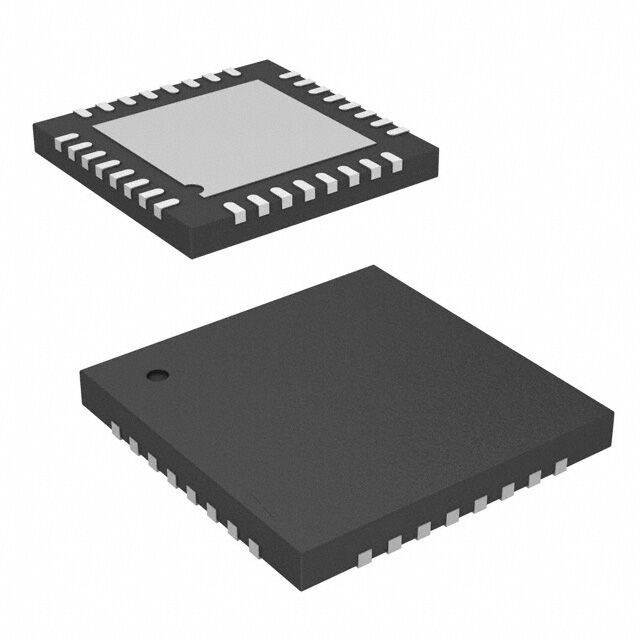

CY8C4127LCE-HV403's PSoC™ 4 HV Precision Analog (PA) is a fully integrated programmable embedded system for lead acid battery monitoring and management. The system features an Arm® Cortex® M0+ processor and programmable and reconfigurable analog and digital blocks.

Features

24- or 48-MHz Arm Cortex M0+ CPU with DMA Controller

Up to 128 KB of code flash with ECC

Up to 8 KB of data flash with ECC

Up to 8 KB of SRAM with ECC

1 KB of Supervisory Flash (SFlash) available for storing constants

Two Precision ΔΣ ADCs (16-20+ bits)

Current Channel with automatic gain

Voltage Channel with HV input divider

Temperature and Diagnostic Channels

Supports both internal and external temperature sensing

Digital filtering, accumulators, and threshold comparisons on all channels

Operates directly off 12-V/24-V battery (tolerates up to 42 V)

Integrated LIN transceiver

ADC input voltage divider

Four 16-bit timer/counter/pulse-width modulator (TCPWM) blocks

Center-aligned, Edge, and pseudo-random modes

Quadrature decoder

±2% up to 49.152-MHz Internal Main Oscillator (IMO)

±1% 2-MHz High-Precision Oscillator (HPOSC)

±5% 32-kHz Precision Internal Low-power Oscillator (PILO)

±1% accuracy on IMO and PILO when software calibrated to the HPOSC

40-kHz Internal Low-speed Oscillator (ILO)
