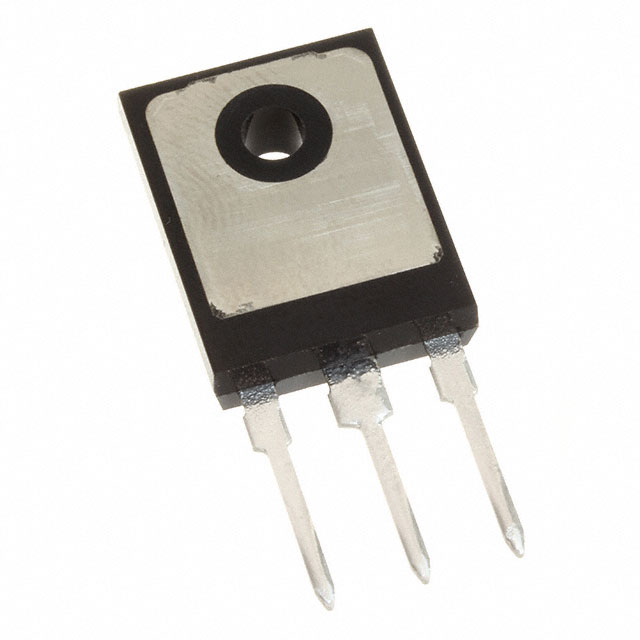

For picture reference, please see the specifications
< >

Commodity Model:AIKQ200N75CP2

Trade Name:AIKQ200N75CP2

Data Manual:AIKQ200N75CP2.pdf

Brand:INFINEON

Particular Year:23+

Package:TO-247-3

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
AIKQ200N75CP2
Package
TO-247-3
Describe
IGBT Channel 750 V 200 A 576 W Through-Hole TO-247-3

Product Description

Automotive IGBT Discretes The AIKQ200N75CP2 is an EDT2 IGBT in a TO247PLUS package with a co-packed diode. 750V EDT technology enables battery voltages of up to 470V and safe, fast switching with increased overvoltage margins, which dramatically improves energy efficiency and cooling in high-voltage automotive applications. The result is a high-performance inverter system.


EDT2 technology has an extremely compact parameter distribution and a positive thermal coefficient. This makes parallel operation very easy, thus providing system flexibility and power scalability.


The AIKQ200N75CP2 is rated at 200 A and is a best-in-class discrete IGBT in the TO247PLUS package, a feature that reduces the number of devices in parallel required to achieve a given power level, thereby increasing power density and reducing overall system cost.


Feature Description

VCE = 750 V

750 V collector-emitter blocking voltage capability

Smooth switching characteristics

Very low VCE (saturation), 1.30 V at ICnom = 200 A

Short circuit robustness

Very tight parameter distribution

Low gate charge QG

Co-packaged with fast soft recovery Emitter controlled 3 diode

AEC-Q101 compliant

Increased overvoltage margins in applications

Reduced number of parallel devices required

Simple gate drive design

Self-limiting under short-circuit conditions

Low EMI signal

High reliability and long operating life


Potential Applications

Traction inverters

DC link discharge switches

Auxiliary inverters
