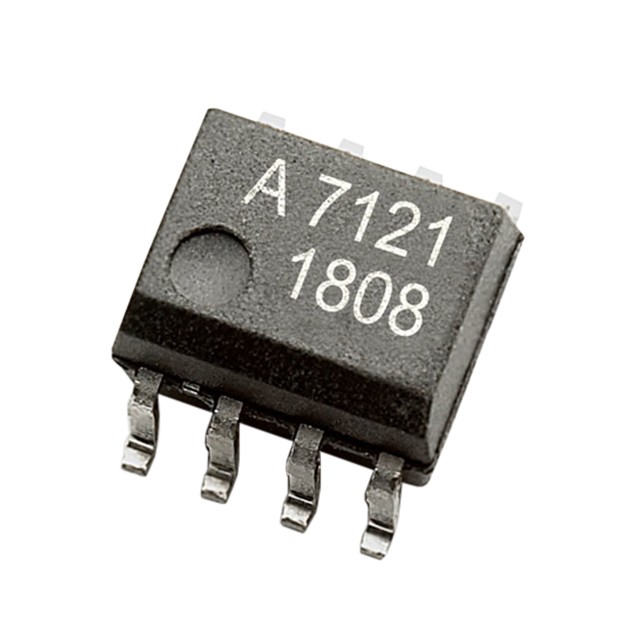

The Broadcom® ACHS-7121-500E products are fully integrated, isolated Hall-effect based linear current sensor devices designed for AC or DC current detection in industrial, commercial, and communication systems.

ACHS-7121-500E Device Attributes

For Measurement: AC/DC

Sensor Type: Hall Effect

Current - Sensing: 10A

Output: Ratio, Voltage

Sensitivity: 185mV/A

Frequency: 80kHz

Linearity : ±0.18%

Voltage - Supply: 4.5V ~ 5.5V

Response Time: 4µs

Current - Supply (Max) : 15mA

Operating Temperature: -40°C ~ 110°C

Polarisation: Bidirectional

Mounting Type: Surface Mount

Package/Shell: 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package: 8-SO

Base Product Number: ACHS-7121

Applications

Low power inverter current sensing

Motor phase and track current detection

Solar inverters

Chargers and converters

Switching Power Supplies
