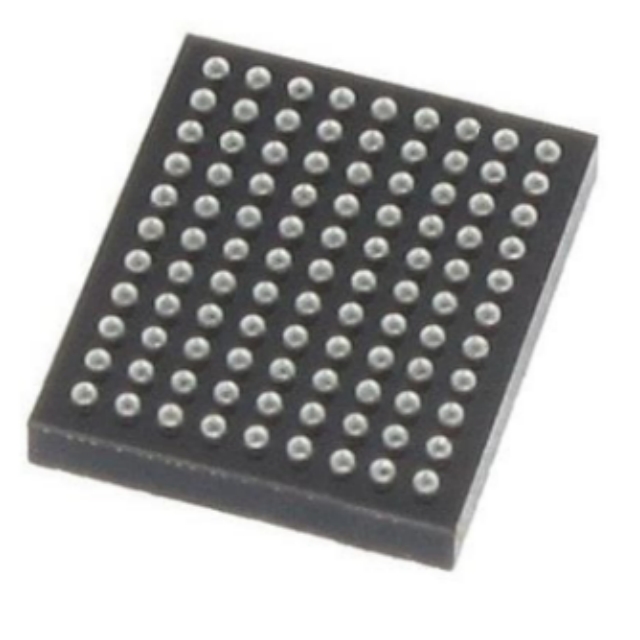

The STA8090F4GBTR belongs to the Teseo III family of products and is a single-chip standalone position receiver IC for operation in multiple constellations. Single chip standalone position receiver IC for multiple constellations (GPS/Galileo/GLONASS/BeiDou/QZSS) The STA8090F4GBTR is a very compact design due to the use of the ARM9 and the wide IOs that can be used as a microcontroller and a microcontroller with GNSS functionality offering 256 kByte internal RAM and 16 Mbits or 32 Mbits of internal flash memory. The smallest BOM makes the STA8090FG an ideal solution for applications such as on-board diagnostic dongles, safes, trackers, telematics, portable on-board diagnostic systems, etc. The STA8090F4GBTR can also run ST's TESEO-DRAW Dead Reckoning Controller, the STMicroelectronics Dead Reckoning Firmware.

Product Attributes

Frequency: 4.092MHz ~ 1.561GHz, 8.57MHz ~ 1.575GHz, 10.23MHz ~ 1.601GHz

Sensitivity: -162dBm

Data Rate (Max): 12Mbps

Modulation or Protocol: BeiDou, Galileo, GLONASS, GNSS, GPS

Application: GPS Receiver

Data Interface: I²C, SPI, UART, USB

Storage Capacity: 256kB SRAM, 512kB ROM

Antenna Connector: PCB, Surface Mount

Voltage - Supply: 1.08V ~ 1.32V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 99-TFBGA

Supplier Device Package: 99-TFBGA (5x6)
