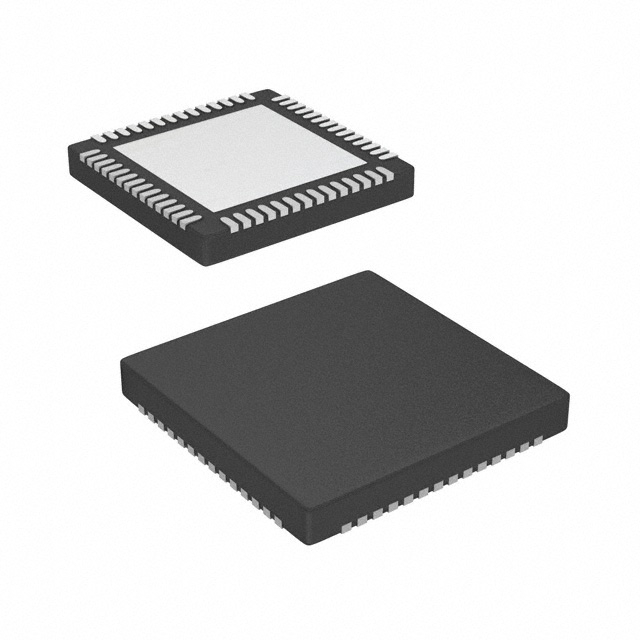

The STA8088FGTR is a single-chip standalone positioning receiver IC for multiple constellations (GPS/Galileo/Glonass/QZSS). The minimal BOM makes the STA8088FGTR an ideal solution for low-cost, small form factor data loggers and motion accessories. The device provides complete GNSS firmware to perform all GNSS operations including tracking, acquisition, navigation and data output without external memory.

Features

● STMicroelectronics® third-generation positioning receiver with 32 tracking channels and 2 fast GPS, Galileo and Glonass systems, Galileo and GLONASS compatible Embedded RF front-end

● Embedded RF front-end with independent GPS/Galileo/QZSS and Glonass IF outputs

● Embedded low noise amplifier

● -162 dBm indoor sensitivity (tracking mode)

● Fast TTFF hot start < 1 sec, cold start 35 sec startup

● High-performance ARM946 MCU (up to 208 MHz)

● 256 Kbyte embedded SRAM

● In-package SQI Flash (16 Mbits)

● Real-time clock (RTC) circuitry

● 32-bit watchdog timer

● 3 UARTs

● 1 I2C master/slave interface

● 1 Synchronous Serial Port (SSP, with Motorola-SPI support) or 1 external SQI Flash interface

● USB2.0 Dual Function Full Speed (12 MHz) with integrated physical layer transceiver

● 2 Controller Area Networks (CAN)

● 2-channel ADC (10-bit)

● 3 embedded 1.8 V regulators

● I/O level selectable 1.8 V or 3.3 V
