The LP8860RQVFPRQ1 is an automotive high efficiency LED driver with a boost controller. The device features 4 high precision current traps that can be controlled via PWM input signals, SPI and/or I2C host.

Characteristics

Type: DC DC Controller

Topology: Boost

Internal Switch: None

Number of Outputs: 4

Voltage - Supply (minimum): 3V

Voltage - Supply (Max): 48V

Voltage - Output: 48V

Current - Output/Channel: 150mA

Frequency: 100kHz ~ 2.2MHz

Dimming: PWM

Applications: Automotive, Backlighting, Lighting

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

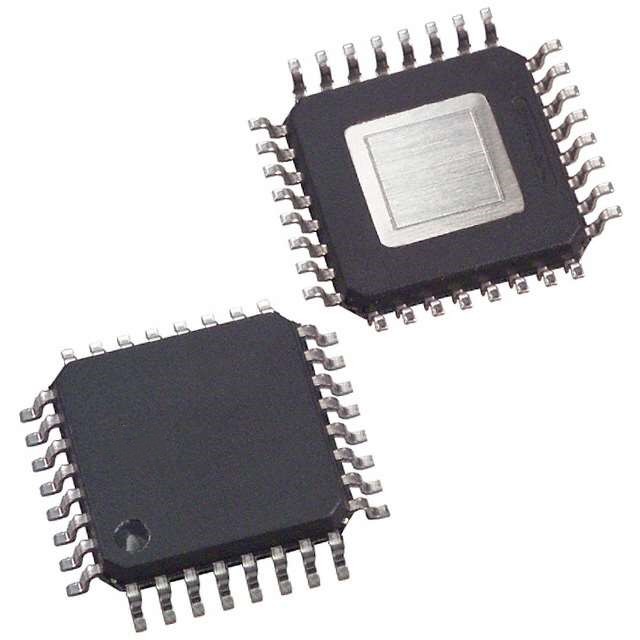

Package/Housing : 32-PowerLQFP

Supplier Device Package: 32-HLQFP (7x7)

APPLICATIONS

- Automotive infotainment systems

- Automotive Infotainment Systems Automotive Instrument Clusters

- Smart Mirrors

- Head-Up Display (HUD)

- Central Information Display (CID)

- Audio and Video Navigation (AVN)
