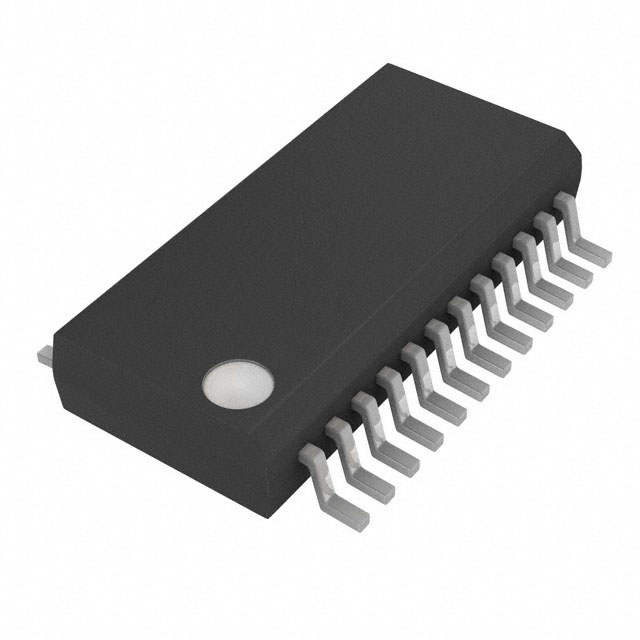

NCV7683DQR2G Enhanced 100 mA Linear Current Regulator and Controller for Automotive Sequenced LED Lighting.

NCV7683DQR2G allows for two programmed levels for stop (100% Duty Cycle) and tail illumination (programmable Duty Cycle), or an optional external PWM control can be implemented.

Features

Constant Current Outputs for LED String Drive

LED Drive Current up to 100 mA per Channel

Open LED String Diagnostic with Open−Drain Output in All Modes

Slew Rate Control Eliminates EMI Concerns

Low Dropout Operation for Pre−Regulator Applications

External Modulation Capable

On−chip 800 Hz Tail PWM Dimming

Single Resistor for Stop Current Set Point

Single Resistor for Tail Dimming Set Point

Overvoltage Set Back Power Limitation

Improved EMC Performance

Programmable Latch−Off function on Open String

Restart Option of Unaffected Strings

Over Temperature Fault Reporting

Global Enable

Display Sequencing

SSOP−24 Fused Lead Package with Exposed Pad

Applications

Rear Combination Lamps (RCL)

Daytime Running Lights (DRL)

Fog Lights

Center High Mounted Stop Lamps (CHMSL) Arrays

Turn Signal and Other Externally Modulated Applications

Signature Lamp
