U-blox Introduces (LEXI-R10401D-00B) Ultra-Small Single-Mode LTE Cat 1bis Module

U-blox Introduces (LEXI-R10401D-00B) Ultra-Small Single-Mode LTE Cat 1bis Module

Source:our siteTime:2024-12-03Views:

The u-blox LEXI-R10 is ideal for a variety of value-conscious applications that require moderate data speeds and excellent coverage.

Overview:

The u-blox LEXI-R10 LTE Cat 1bis module consists of a highly integrated compact module with medium data connection capabilities (10Mbit/s downlink, 5Mbit/s uplink) and extremely low power consumption.


Measuring 16mm x 16mm, the LEXI-R10401D-00B is a compact LTE Cat 1bis single-mode module that enables high design flexibility and miniaturization. Its embedded Wi-Fi® radio scans indoor locations for hot spots and supports the u-blox CellLocate ® location service. These professional-grade modules comply with u-blox's certification specification based on the AEC-Q104 standard. The u-blox LEXI-R10 is ideal for a variety of value-focused applications that require moderate data speeds and excellent coverage. Typical applications include asset tracking, telematics, healthcare, and wearables.

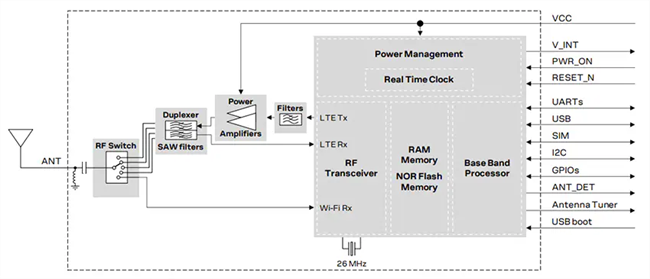

Block diagram:


Main features:

Flexible and cost-optimized design, available in global and regional models

Certified by leading mobile operators, including US LTE networks

Low power consumption, with eDRX and PSM energy-saving features

Wi-Fi scanning and u-blox CellLocate® for indoor and outdoor location

Universal connectivity via 4G LTE network

Supported services

MQTT Anywhere, Flex

CellLocate/Wi-Fi

Manufactured in IATF 16949 certified facilities

Lead-free, RoHS compliant


Applications:

Person/pet tracker

Wearable device

Asset tracking

Pay-as-you-use insurance (UBI) and stolen vehicle recovery

Health care
