ADAU1772BCPZ a four-input, two-output codec with a built-in digital processing engine

ADAU1772BCPZ a four-input, two-output codec with a built-in digital processing engine

Source:our siteTime:2024-12-03Views:

The ADAU1772BCPZ is a four input and two output codec with a digital processing engine that performs filtering, level control, signal level monitoring, and mixing.

ADAU1772BCPZ 4 ADC, 2 DAC low power codec with audio processor

Features:

Programmable audio processing engine

-- 192 kHz processing path

-- Biorder filter, limiter, volume control, mixing

Low latency 24-bit ADCs and Dacs

-- 102 dB SNR (signal through PGA and ADC, with A-weighted filter)

-- 107 dB combined SNR (signal via DAC and headset, with A-weighted filter)

Serial port sampling rate: 8 kHz to 192 kHz

Analog to analog delay: 38 μs

Four single-ended analog inputs - configurable as microphone or line inputs

Stereo analog audio output - single-ended or differential, configurable as a line output driver or headphone driver

PLL supports any input clock rate from 8 MHz to 27 MHz

Full-duplex, Asynchronous Sampling Rate Converter (ASRC)


Description:

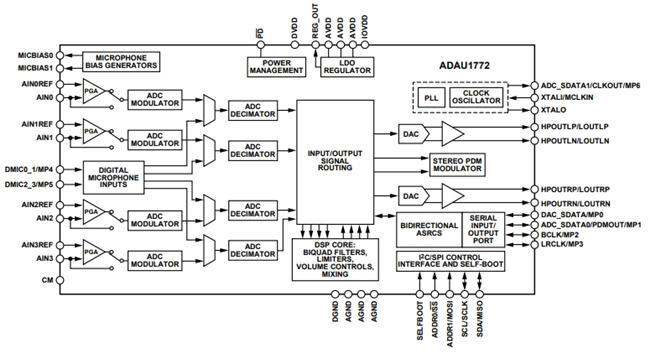

The ADAU1772BCPZ is a codec with four inputs and two outputs with a built-in digital processing engine that performs filtering, level control, signal level monitoring and mixing. The path from the analog input to the DSP core to the analog output is optimized for low latency, making it ideal for noise-cancelling headsets. With the addition of a few passive components, crystals and an EEPROM for boot, the ADAU1772 provides a complete headset solution.


Applications

• Noise-cancelling headphones, headphones and headsets

• Bluetooth ANC headphones, earphones and headsets

• Personal navigation devices

• Digital cameras and digital camcorders
