Intel E3800 Atom Processor Product Family FH8065301989700S (E3805,1M Cache, 1.33 GHz)

Intel E3800 Atom Processor Product Family FH8065301989700S (E3805,1M Cache, 1.33 GHz)

Source:our siteTime:2024-11-29Views:

The FH8065301989700S processor is based on the Silvermont microarchitecture and uses Intels industry-leading 22nm process technology combined with 3D Tri-Gate transistors.Specifications:Number of cores: 2Number of threads: 2Processor basic frequency: …

The FH8065301989700S processor is based on the Silvermont microarchitecture and uses Intel's industry-leading 22nm process technology combined with 3D Tri-Gate transistors.


Specifications:

Number of cores: 2

Number of threads: 2

Processor basic frequency: 1.33 GHz

Cache: 1 MB L2 Cache

TDP: 3 W

Package: FCBGA1170

Operating temperature: -40°C to 110°C

Size: 25mm x 27mm


Product Introduction:

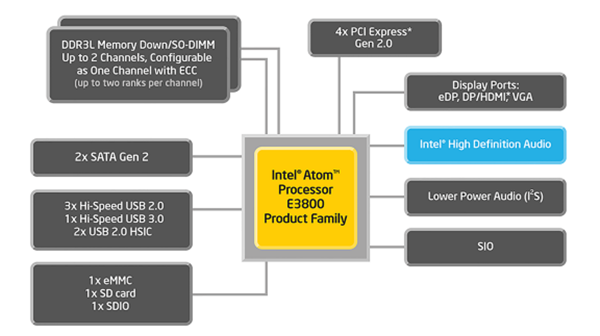

The Intel E3800 Atom processor family is based on the Silvermont microarchitecture and uses Intel's industry-leading 22nm process technology combined with 3D Tri-Gate transistors to dramatically improve the computational performance and energy efficiency of intelligent systems. It is the first system-on-chip (SoC) designed specifically for intelligent systems, with outstanding compute, graphics and media performance and the ability to operate in a wider range of thermal conditions.


Highlights of the product family include: high I/O connectivity, integrated memory controller, virtualization, error correction code (ECC), and built-in security features with a thermal design power (TDP) range of 5W to 10W. These SOCs are particularly suited for efficient imaging workflows, digital signage with secure content delivery capabilities, visually appealing interactive clients (interactive kiosks, ATMs and POS terminals), portable medical devices, industrial control systems and in-vehicle infotainment (IVI) systems.


Main functions:

SoC designed for intelligent systems

Excellent compute, graphics and media performance

Extended temperature range

High I/O connectivity, integrated memory controller

Virtualization, error correction code (ECC), and built-in security
