Amphenol's Paladin® HD series continues its legacy as the industry's leading interconnect solution for high-speed applications. The Paladin® HD2 utilizes the same board connection, two-axle cable connection, and pairing interface as the Paladin® HD for backward compatibility, providing a direct upgrade to the 224Gb/s PAM4. Discrete shielded differential pairs and revolutionary board technology achieve unmatched performance and density.

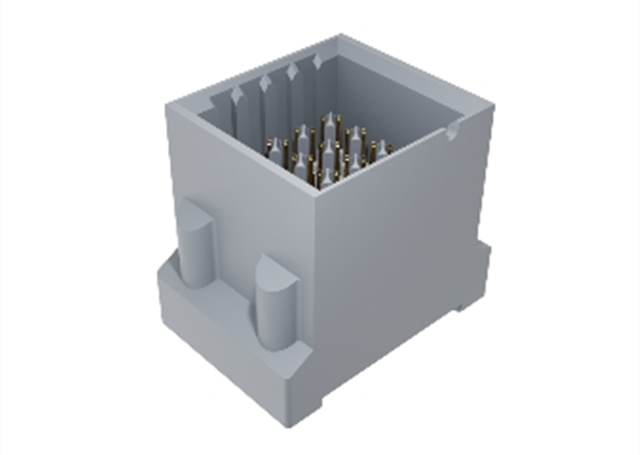

Specifications of 249-4214-11V:

Series: Paladin® HD2 224Gb/s backplane connector

Type: Vertical connector

Number of columns: 4-Pair

Row number: 4 columns

Spacing: 2.40mm

Plating contact area: GXT+

Wipe (Contact) : 1.50mm

Applications:

Computer network server

Artificial Intelligence/Artificial Intelligence Computing

To store; reserve

supercomputer

Switch/Router

Wireless infrastructure

Optical transmission

Features and advantages:

World-class SI performance of 224Gb/s

The IL to XTalk margin is greater than 40dB at Nyquist frequencies for all architectures

Industry-leading 224Gb/s density

144 differential pairs in 1RU frame, with orthogonal spacing, including airflow space

Consistent SI performance across the mechanical fit of the connector

Impedance changes are less than 5ω over the entire erase range, and crosstalk effects are minimal

Linear transmission through 67GHz

No resonance in 67GHz

Support for all system architectures; Cables can be terminated to other 224Gb/s product lines

Board to Board, Board to Cable, PHD2 Cable to Cable and PHD2 Cable to Ultrapass (224Gb/s)

Maximized routing channel

Each layer routes two or more high-speed differential pairs

Mechanical matching and electrical balancing signals in each differential pair

Low mode conversion for a non-skew design while maintaining traditional routing interrupts

Revolutionary mixing board attachment: compression mounting signal and ground

Optimized for SI performance, density, and wiring

Symmetrical fit interface

Supports 90° and 270° orthogonal applications

Ordinary differential pair element

Mass production with repeatable assembly steps for all configurations

The match and dimensions are compatible with Paladin® HD and utilize a proven differential pair architecture

Mate is compatible with upgrade paths from 112Gb/s to 224Gb/s, with reliable and powerful design features

Paladin® HD2 224Gb/s series products:

249-4214-11V

249-4216-11V

249-4218-11V

249-4219-11V

249-421H-11V
