Overview:

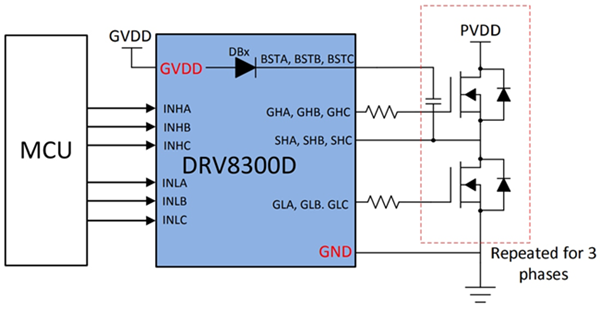

The DRV8300UDIPWR is a 100V three-phase half-bridge gate driver capable of driving both high - and low-side N-channel power MOSFETs. The DRV8300UD uses an integrated bootstrap diode and external capacitors to generate the appropriate gate drive voltage for the high-side MOSFETs. GVDD is used to generate the gate drive voltage for the low-side MOSFETs. The grid drive architecture supports peak pull currents up to 750mA and fill currents up to 1.5A.

Phase pin SHx can withstand significant negative voltage transients; The high side gate driver power supplies BSTx and GHx can support higher positive voltage transients (125V) absolute maximum, thus improving the robustness of the system. Smaller propagation delays and delay matching parameters minimize dead-time requirements, further improving efficiency. Undervoltage protection for low and high sides with GVDD and BST undervoltage locking.

Features

• 100V three-phase half-bridge gate driver

- Drive N-channel MOSFET (NMOS)

- Grid driver power supply (GVDD) : 5-20V

- MOSFET power supply (SHx) supports voltages up to 100V

• Integrated bootstrap diode (DRV8300UD device)

• Support inverting and in-phase INLx input

• Bootstrap grid drive architecture

- 750mA pulling current

- 1.5A perfusion current

• Supports applications powered by up to 15 batteries in series

• Supports higher BSTUV (8V typical) and GVDDUV (7.6V typical) thresholds for standard MOSFETs

• SHx pin with low leakage current (less than 55µA)

• Absolute maximum BSTx voltage up to 125V

• SHx pin transient negative pressure up to -22V

• Built-in transconductance protection

• For QFN package models, the dead zone time can be adjusted via DT pins

• Fixed insertion dead time of 200ns for TSSOP package models

• Support 3.3V and 5V logical inputs (absolute maximum 20V)

• 4ns typical propagation delay matching

• Compact QFN and TSSOP packages

• Efficient system design with power block

• Integrated protection features

- BST Undervoltage Lock (BSTUV)

- GVDD Undervoltage (GVDDUV)

Applications

• Electric bicycles, electric scooters and electric cars

• Fans, pumps and servo drivers

• Brushless direct current (BLDC) motor modules and PMSM

• Wireless gardening and power tools, lawn mowers

• Cordless vacuum cleaner

• Drones, robots and remote-controlled toys

• Industrial and logistics robots
