2-Channel RGB LED, BD2812GU-E2 (ROHM) Illuminated Charge Pump LED Driver

2-Channel RGB LED, BD2812GU-E2 (ROHM) Illuminated Charge Pump LED Driver

Source:our siteTime:2024-08-17Views:

Overview:BD2812GU is a decorative RGB LED driver. Can drive two RGB systems (6 lights). Built-in light mode, lighting without CPU load. Ideal for lighting using RGB leds and decorative applications using monochrome leds. The DC/DC converter unit uses …

Overview:

BD2812GU is a decorative RGB LED driver. Can drive two RGB systems (6 lights). Built-in light mode, lighting without CPU load. Ideal for lighting using RGB leds and decorative applications using monochrome leds. The DC/DC converter unit uses a charge pump and does not use coils. Compact size with chip size package.

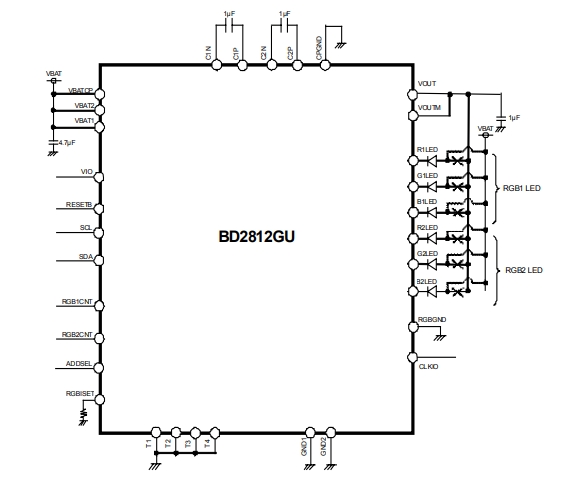

BD2812GU-E2 Circuit diagram:




Features:

RGB LED Driver (Dual driver)

Slope control function (allows dual drive independent control).

Slope control can be achieved using DC current.

Supports continuous lighting mode and single cycle lighting mode.

Independent external on/off synchronization terminals are provided.

Multiple drives can be used simultaneously.

The Sleep operation mode function enables low-power operation.

Charge pump system DC/DC

Automatic change of magnification (1x, 1.5x, 2x)

Overvoltage protection (automatic recovery type)

Overcurrent protection (automatic recovery)

Hot Shutdown (TSD)


Applications:

Mobile phones, portable devices
