Supply [Broadcom Ethernet IC] BCM56275A1KFSBG 244Gb/s Programmable Multilayer Ethernet Switches

Supply [Broadcom Ethernet IC] BCM56275A1KFSBG 244Gb/s Programmable Multilayer Ethernet Switches

Source:our siteTime:2024-07-10Views:

BCM56275A1KFSBG - Product Description:BCM56275A1KFSBG is a stackable 48-port intelligent Ethernet switch with native VxLAN support, programmable pipeline, and advanced flow analytics engine. The BCM56275 addresses the need for security, bandwidth, and…

BCM56275A1KFSBG - Product Description:

BCM56275A1KFSBG is a stackable 48-port intelligent Ethernet switch with native VxLAN support, programmable pipeline, and advanced flow analytics engine. The BCM56275 addresses the need for security, bandwidth, and network intelligence at the edge of modern campus networks while delivering higher bandwidth for the front panels and uplinks needed for the new generation of IEEE 802.11ac and IEEE 802.11ax Wi-Fi access points.


Shenzhen Mingjiada Electronics Co., Ltd. Supply [Broadcom Ethernet IC] BCM56275A1KFSBG 244Gb/s Programmable Multilayer Ethernet Switches

Part Number: BCM56275A1KFSBG

Package: BGA

Type: Ethernet Switches

Applications: Enterprise wiring closet, Enterprise chassis system

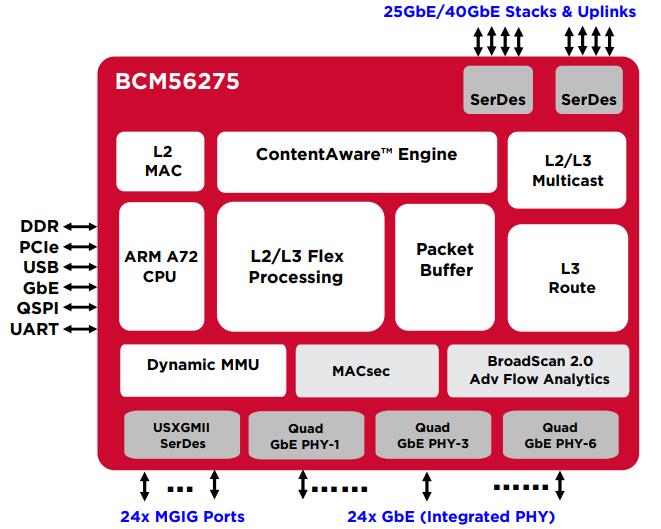

BCM56275A1KFSBG - Block Diagram:



BCM56275A1KFSBG - Key Features

Fully integrated PHY for 24P GbE solution

Multigigabit interfaces for IEEE 802.11ac and IEEE 802.11ax AP connectivity

25GbE/40GbE uplinks

BroadScan2.0 flow-analytics engine

FleXGS™ programmable pipeline

Integrated MACsec engine for uplinks or downlinks

Wired and wireless traffic separation

Integrated Arm Cortex-A72 processor
