Supply, Recycle CC1310F32RSMR [TI] Ultra-Low-Power Sub-1 GHz Wireless MCU

Supply, Recycle CC1310F32RSMR [TI] Ultra-Low-Power Sub-1 GHz Wireless MCU

Source:our siteTime:2024-06-14Views:

Shenzhen Mingjiada Electronics Co., Ltd. Supply, Recycle CC1310F32RSMR [TI] Ultra-Low-Power Sub-1 GHz Wireless MCUProduct DescriptionCC1310F32RSMR is a cost-effective, ultra-low-power wireless MCUs capable of handling Sub-1 GHz RF frequencies. It comb…

Shenzhen Mingjiada Electronics Co., Ltd. Supply, Recycle CC1310F32RSMR [TI] Ultra-Low-Power Sub-1 GHz Wireless MCU

Product Description

CC1310F32RSMR is a cost-effective, ultra-low-power wireless MCUs capable of handling Sub-1 GHz RF frequencies. It combines a flexible, very lowpower RF transceiver with a powerful 48-MHz Arm® Cortex®-M3 microcontroller in a platform supporting multiple physical layers and RF standards. The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC/DC converter.

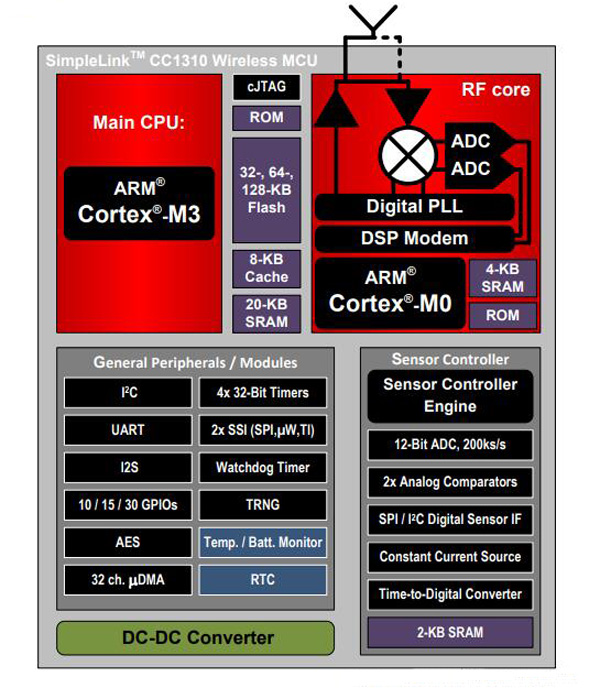

CC1310 - Functional Block Diagram

Key Features

Microcontroller

Powerful Arm® Cortex®-M3 Processor

EEMBC CoreMark® Score: 142

EEMBC ULPBench™ Score: 158

Clock Speed up to 48-MHz

32KB, 64KB, and 128KB of In-System Programmable Flash

8KB of SRAM for Cache

(or as General-Purpose RAM)

20KB of Ultra-Low-Leakage SRAM

2-Pin cJTAG and JTAG Debugging

Supports Over-the-Air (OTA) Update

Ultra-Low-Power Sensor Controller

Can Run Autonomously From the Rest of the System

16-Bit Architecture

2KB of Ultra-Low-Leakage SRAM for Code and Data

External System

On-Chip Internal DC/DC Converter

Seamless Integration With the SimpleLink™ CC1190 Range Extender

Applications

• Low-Power Wireless Systems With 50-kHz to 5-MHz Channel Spacing

• Home and Building Automation

• Wireless Alarm and Security Systems

• Industrial Monitoring and Control

• Smart Grid and Automatic Meter Reading

• Wireless Healthcare Applications

If you have a requirement, please call Mr. Chen for advice at:

Tel: +86 13410018555

E-mail: sales@hkmjd.com

Home page URL: www.hkmjd.com
