The LAN8810-AKZE is a Gigabit Ethernet physical layer transceiver from Microchip that supports 10/100/1000 Mbps rates and complies with IEEE 802.3 and IEEE 802.3AB standards. Its core features are as follows:

Single-chip Ethernet physical layer transceiver (PHY)

Compliant with IEEE 802.3AB (1000BASE-T), IEEE 802.3U (Fast Ethernet) and ISO 802-3/IEEE 802.3 (10BASE-T)

HP Auto-MDIX supports compliance with the IEEE 802.3ab specification and operates at speeds of 10/100/1000 Mbps

Small-sized, 72-pin QFN lead-free RoHS standard package, with GMII (10 x 10 x 0.9mm height)

Flexible configuration of LED status indicator lights

Realize a low-power working mode

Overview

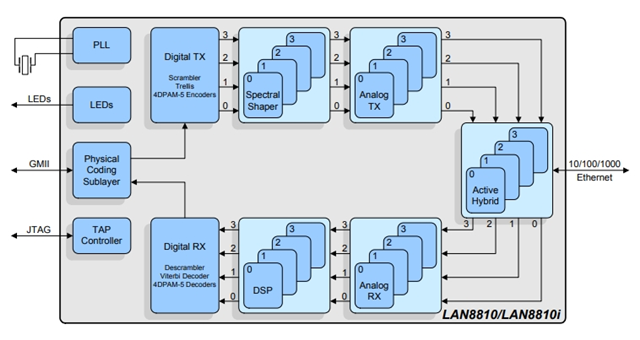

The LAN8810-AKZE is a low-power 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet physical layer (PHY) transceiver with variable I/O voltage and fully complies with IEEE 802.3 and 802.3AB standards.

The LAN8810-AKZE can be configured to communicate with Ethernet MAC via the standard MII (IEEE 802.3u) /GMII (IEEE 802.3z) interface. It features a full-duplex transceiver that can operate at 1000 Mbps on four-pair Category 5 or better balanced twisted-pair cables. According to the IEEE 802.3-2005 standard, all digital interface pins can withstand 3.6V.

The LAN8810-AKZE can also be configured through hardware and software, and supports register functions that comply with the IEEE 802.3-2005 standard and vware-specific via SMI. The LAN8810-AKZE enables automatic negotiation to automatically determine the optimal speed and dual working mode. HP Auto-MDIX support allows the use of direct connection or cross cables.

Detailed parameters

Product: Ethernet Transceivers

Standard: 10/1GBASE-T, 100BASE-TX

Number of transceivers: 1 Transceiver

Data rate: 10 Mb/s, 100 Mb/s, 1 Gb/s

Interface types: JTAG, MDI-X, MII, GMII

Power supply voltage - minimum: 1.2V

Power supply voltage - maximum: 1.2V

Operating temperature: 0°C to + 70°C

Packaging/Housing: VQFN-72

LAN8810-AKZE transceiver target application

Set-top box

Networked printers and servers

Testing instrument

The local area network on the motherboard

Embedded Telecommunication applications

Video recording/playback system

Cable modem/router

DSL modem/router

Digital video recorder

IP and video telephony

Wireless access point

Digital Television

Digital media adapter/server

Game console

POE Application
