The STBR3012L2Y is a high voltage rectifier for automotive use, mainly used for input bridge applications in battery charging systems. The following are its core features:

Compliant with AEC-Q101

Ultra-low conduction loss

Ultra-low reverse loss

High junction temperature capacity (+175°C)

VRRM can be guaranteed within the range of -40 °C to +175 °C

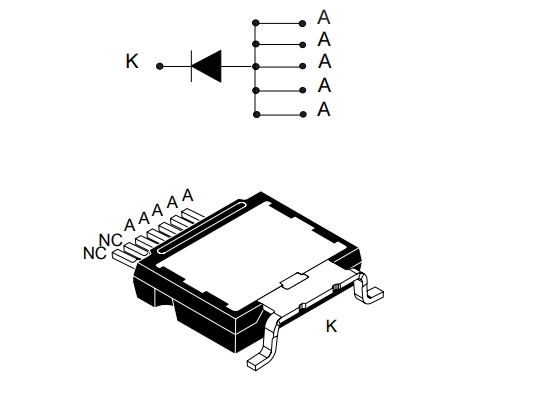

HU3PAK package

Support PPAP

Compliant with ECOPACK2

For details

The STBR3012L2Y automotive high-voltage rectifier adopts a high-quality design, featuring consistent reproducibility and inherent robustness. Thanks to these features, the STBR3012L2Y is highly suitable for heavy-duty applications that require long-term reliability, such as automotive applications. The STBR3012L2Y features ultra-low conduction loss and is particularly suitable for use as an input bridge diode in battery chargers.

Basic parameters

Product: STBR3012L2Y

Technology: Standard

Voltage - DC reverse (Vr) (maximum value) : 1600 V

Current - average rectification (Io) : 30A

Voltage - forward (Vf) at different If: 1.3 V @ 30 A

Speed: Standard recovery >500ns, > 200mA (Io)

Current - reverse leakage at different VRS: 2 µA @ 1.6kV

Capacitance at different Vr and F: -

Grade: Automotive grade

Qualification: AEC-Q101

Installation type: Surface mount type

Packaging/Housing: HU3PAK

Operating temperature range: -40°C to 175°C

Application scenarios

Automotive electronics ‌ : commonly used in on-board chargers, motor drives and other devices that require long-term stable operation. ‌

Industry and energy ‌ : suitable for power conversion scenarios with high voltage and large current. ‌

STBR3012L2Y, with its ultra-low conduction loss and reverse loss, as well as high junction temperature capability, has broad application prospects in fields with high reliability requirements such as electric vehicles and industrial tools.
