The SLG51003V is a 3-channel low-dropout linear regulator (LDO) power management chip launched by Renesas, featuring GreenPAK™ technology and specifically designed for advanced sensors, RF devices, and battery-powered equipment. The following are its core features:

Three-channel high-performance LDO IC

Independent input power supply, supporting flexible power configuration

Maximum output current range: 800mA (LDO_LV)

The LDO_LV channel has a bypass mode

High PSRR: 98.5 dB (at 1 kHz) and 68 dB (at 1 MHz) (LDO_HP

Ultra-low output voltage noise: 16μV(LDO_HP)

Low dropout voltage: 10mV(LDO_LV) per 100mA load

Adjustable conversion speed and current limit

The GPIO/I²C (1.2V to 5V), configuration, control options and power sequencer that users can set independently

GreenPAK combines functionality and delayed macro cell resources

All channels have the capacity for peak current

The I²C slave address with optional user pins

The configuration, control options and built-in power sequencer that users can set independently

Easy-to-use free development software

Achieve large-scale production rapidly

Off mode IQ: 300nA

The small plastic TQFN-14 package (2mm x 2.2mm x 0.55mm) enables an economical and cost-effective PCB solution

Introduction

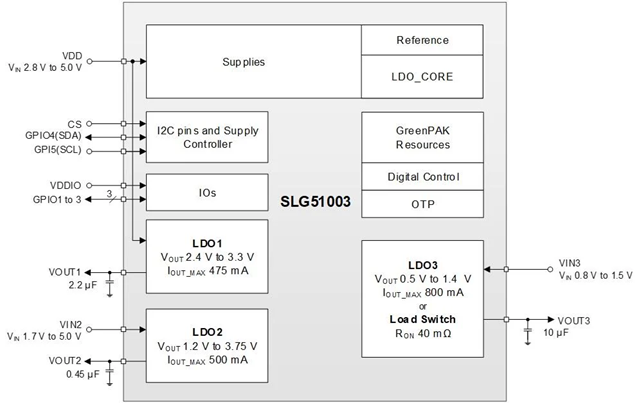

The SLG51003V 3-channel LDO power supply GreenPAK™ features three compact, customizable low-dropout regulators with industry-leading high-performance PSRR. This fully integrated 3-channel LDO solution features a small, convenient 14-pin TQFN package and is designed for advanced sensor applications. The SLG51003V IC features 68dB (at 1MHz PSRR) on the input voltage power supply, 16µVRMS output voltage noise, and strict output voltage accuracy of ±1% across the entire temperature range. The SLG51003V provides an ultra-low turn-off current of 240nA for the entire IC and features an integrated LUT, delay module, macro cellular, and configurable GPIO. Its typical applications include power management for CMOS image sensors, RF and wireless interfaces, battery-powered devices, and other advanced sensor applications.

The SLG51003V has the following core parameters:

Output current: 475 mA, 500 mA, 800 mA

Number of Output terminals: 3 Output

Polarity: Positive

Static current: 300 nA

Input voltage - minimum: 2.8V

Input voltage - maximum value: 5 V

PSRR/ Ripple suppression - Typical value: 98.5 dB

Output type: Adjustable

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Hysteresis voltage: 10 mV

Series: SLG51003V

Packaging: Reel

Development Kit: SLG51003V-EVB

Hysteresis voltage - maximum value: 200 mV

Line adjustment rate: 4.6 mV

Load regulation: Yes, Regulated

Operating temperature range: -40 ° C to + 85 ° C

Installation style: SMD/SMT

Packaging/Cabinet: TQFN-14

Output voltage range: 2.4V to 3.3V, 1.2V to 3.75V, 500mV to 1.4V

Pd- Power dissipation: 2.25W

Product type: LDO Voltage Regulators

Reference voltage: 1.2V

Trademark Name: GreenPAK

Type: Multi-Output LDOs

Voltage regulation accuracy: 1%

Application field

Power management for CMOS image sensors

Radio frequency equipment and wireless interfaces

Battery-powered equipment

Other advanced sensor applications
