RC21214A000GND: A 2:8 Output AutoClock Automotive Programmable Clock Generator
The RC21214A000GND is an automotive programmable clock generator designed to meet the needs of high precision clock signals in automotive electronic systems. The following are its core features:169fs RMS phase jitter (12kHz to 20MHz, 156.25MHz)PCIe Ge…
The RC21214A000GND is an automotive programmable clock generator designed to meet the needs of high precision clock signals in automotive electronic systems. The following are its core features:
169fs RMS phase jitter (12kHz to 20MHz, 156.25MHz)
PCIe® Gen6 Common Clock (CC) 27fs RMS
Supports PCIe SRIS and SRNS
Output: 1kHz to 650MHz (differential), 1kHz to 200MHz (single-ended)
LVCMOS, LVDS or low-power HCSL output types are simply AC coupled to LVPECL and CML
LPHCSL integrated terminal
Seven programmable general-purpose input/output (GPIO)
Multiple configurations can be stored in the internal one-time programmable (OTP) memory
1MHzI2C serial port
Operating voltage: 1.8V and/or 3.3V
Package: 5mm×5mm×0.75mm 40-QFN package
8 differential or 16 single-ended outputs: RC21214 (dual crystal)

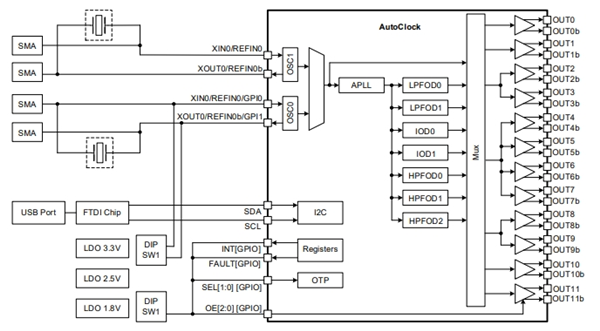

Overview
RC21214A000GND is a high-performance AutoClock programmable clock generator specifically designed for automotive applications. The features of the RC21214A000GND generator include ISO9001 compliance, AEC-Q100 certification, an operating temperature range of -40°C to +105°C (equivalent to Class 2), and PPAP support. These features can achieve high reliability and robustness in automotive environments, meeting strict industry standards, while providing diagnostic functions to enhance performance monitoring.
Typical applications
RC21214A000GND is mainly used in scenarios where strict requirements are placed on clock accuracy and reliability. Youdaoplaceholder0 these applications include:
Information entertainment
"Approach"
Domain controller
Regional controller
Basic parameters
Product: RC21214A000GND
Type: Clock generator
PLL: With bypass
Input: clock, crystal
Output: CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL
Number of circuits: 1
Ratio - Input: Output: 2:8
Differential - Input: Output: None/Yes
Frequency - Maximum value: 650MHz
Frequency divider/frequency doubler: Yes/No
Voltage - Power supply: 1.71V to 1.89V, 3.135V to 3.465V
Operating temperature: -40°C to 105°C (TA)
Installation type: Surface mount, wettable side wing
Grade: Automotive grade
Qualification: AEC-Q100
Packaging/Housing: 40-WFQFN
If you need to purchase the RC21214A000GND clock generator, please visit the official website of Mingjiada electronics (www.hkmjd.com).
