【LT3045EMSE】PSRR low dropout linear regulator (LDO) with 20V, 500mA and ultra-low noise

【LT3045EMSE】PSRR low dropout linear regulator (LDO) with 20V, 500mA and ultra-low noise

Source:our siteTime:2025-07-04Views:

The LT3045EMSE is a high-performance low-dropout linear regulator with a voltage of 20V and 500mA. It adopts LTCs ultra-low noise and ultra-high PSRR architecture to power noise-sensitive applications. The following are its core features:Ultra-low RMS…

The LT3045EMSE is a high-performance low-dropout linear regulator with a voltage of 20V and 500mA. It adopts LTC's ultra-low noise and ultra-high PSRR architecture to power noise-sensitive applications. The following are its core features:

Ultra-low RMS noise: 0.8µVRMS (10Hz to 100kHz)

Ultra-low shot noise: 2nV/√Hz (at 10kHz)

Ultra-high PSRR: 76dB (at 1MHz)

Output current: 500mA

Wide input voltage range: 1.8V to 20V

A single capacitor improves noise performance and PSRR

100µA SET pin current: Initial accuracy: ±1%

Set the output voltage for a single resistor

High bandwidth: 1MHz

Programmable current limiting

Low pressure difference: 260mV

Output voltage range: 0V to 15V

The programmable power supply is good

Rapid start-up capability

Precision Enable /UVLO

It can be connected in parallel to achieve lower noise and higher current

Internal current limiting with a return function

Minimum output capacitance: 10μF (ceramic capacitance)

Battery reverse connection and reverse current protection

12-pin MSOP package

Passed the AEC-Q100 automotive application certification


For details

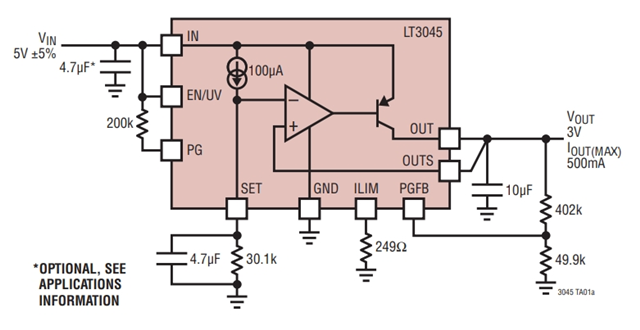

The LT3045EMSE is designed as a precision current reference voltage source for subsequent high-performance voltage buffers. It can be easily connected in parallel to further reduce noise, increase output current and dissipate heat on the PCB.


The LT3045EMSE provides a current of 500mA at a typical voltage difference of 260mV. The nominal working static current is 2.2mA, and it drops to less than 1µA when turned off. The LT3045EMSE features a wide output voltage range (0V to 15V) while maintaining unit gain operation, providing almost constant output noise, PSRR, bandwidth and load adjustment performance, unaffected by the programmed output voltage. In addition, the LT3045EMSE features programmable current limiting, fast startup capability, and a well-programmed power supply to indicate output voltage regulation.


The LT3045EMSE can operate stably with ceramic output capacitors as small as 10µF. The built-in protection functions include battery reverse connection protection, reverse current protection, internal current limiting with return function and thermal limiting with hysteresis. The LT3045EMSE adopts a heat-enhanced 12-pin MSOP package.


Application scenarios

RF power supplies: PLL, VCO, mixer, LNA, PA

Extremely low noise instruments and meters

High-speed/high-precision data converter

Medical applications: Imaging, diagnosis

Precision power supply

A rear regulator for switching power supplies


Technical specifications

Product: LT3045EMSE

Output configuration: positive

Output type: Adjustable

Number of voltage regulators: 1

Voltage - Input (maximum value) : 20V

Voltage - Output (minimum value/fixed) : 0V

Voltage - Output (maximum value) : 15V

Voltage drop (maximum value) : 0.45V @ 500mA

Current - Output: 500mA

Current-static (Iq) : 20 µA

Current - power supply (maximum value) : 25 mA

PSRR: 117dB to 53dB (120Hz to 10MHz)

Control characteristics: Enable, good power supply, soft start

Protection functions: Overcurrent, over-temperature, reverse polarity, undervoltage lock (UVLO)

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Packaging/Housing: 12-TSSOP


Welcome to contact Mingjiada (www.hkmjd.com) for exclusive quotations of LT3045EMSE!
