Overview:

The P9222-RAZGI8 is an integrated single-chip wireless power receiver IC (Rx) for applications up to 5W. The P9222-R is highly efficient at light loads, making it ideal for low-power applications such as earbud box charging. The unique Ping detection feature allows users to indicate the wireless charger connection early and improves thermal performance at the end of the battery charge. The low voltage lock (UVLO) threshold allows the receiver to start even if the transmitter's digital ping strength is weak over the extended area.

The device includes over and under/over voltage protection. Internal overvoltage clamping protects the output of the rectifier from rising high voltage heights when the receiver rapidly moves from a low to a high coupling position. Integrated 32-bit ARM®Cortex®-M0 processor (ARM, Ltd. Provides a high level of programmability and design parameters that can be easily configured via an I2C interface or external EEPROM.

The P9222-R is available in a RoHS subminiature WLCSP-40 package and is rated for ambient operating temperatures ranging from -40°C to +85°C.

Features

Ultra-compact, efficient wireless power receiver for up to 5W applications

Compatible with WPC 1.2Qi Reference Power Profile (BPP)

Light load efficiency optimized for low power applications

Ping detection reduces power consumption at the end of a charge

Low undervoltage locking (UVLO) is used for low voltage starting, enabling faster connections over a larger area

ASK and FSK modulation/demodulation for bidirectional communication: Rx-to-Tx and Tx-to-Rx

Easily configure design parameters via the I2C interface on the external EEPROM

ADC input for measuring battery voltage or system voltage

Embedded 32-bit ARM® Cortex®-M0 processor

Internal overpressure clamp

Low standby and operating mode power consumption

High performance Low voltage Difference (LDO) regulators with low RDS(on) and programmable current limits

Supports I2C slave/master mode

40-WLCSP: 5 × 8 ball array, 2.28 × 3.38 mm, 0.4mm pitch

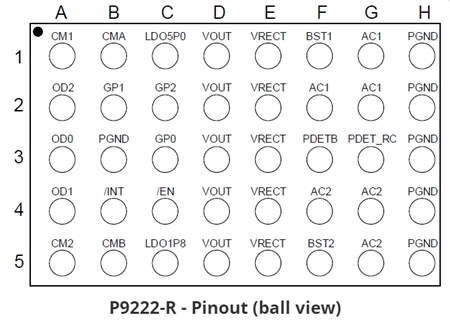

P9222-R pin diagram:

If you need to P9222-RAZGI8, or need BOM table matching order, please feel free to contact us!
