[Original TI Converter] Supply TPS54628DDAR 6A, Synchronous Step-Down Converter

Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply of TI (TPS54628DDAR) 4.5V to 18V, 6A Synchronous Buck Converter in HTSSOP package with Eco-Mode.

Product Details:

The TPS54628DDAR is an adaptive turn-on time D-CAP2 mode synchronous buck converter. The TPS54628DDAR's main control loop is controlled using the D-CAP2 mode, which provides fast transient response without the need for external compensation components. Adaptive turn-on time control supports seamless transition between pulse width modulation (PWM) mode at higher loads and Eco-mode™ operation at lighter loads. Eco-mode™ enables the TPS54628DDAR to maintain high efficiency under light load conditions.

Model No.: TPS54628DDAR

Package: HSOIC-8

Type: Synchronous Buck Converter

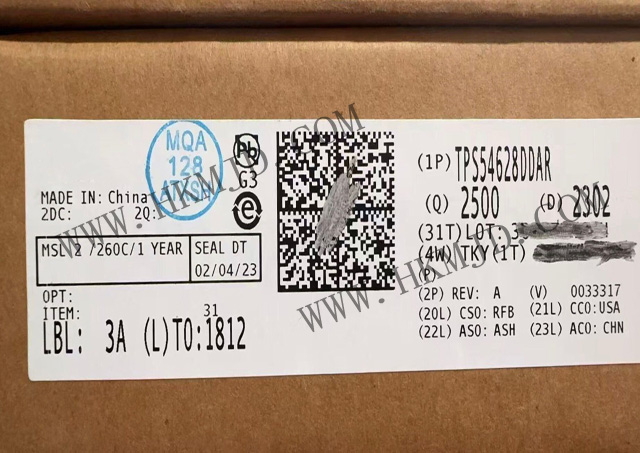

Product Diagram:

TPS54628DDAR Specifications:

Series: D-CAP2™, Eco-Mode™

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 4.5V

Voltage - Input (Max): 18V

Voltage - Output (Min/Fixed): 0.765V

Voltage - Output (Max): 5.5V

Current - Output: 6A

Frequency - Switching: 650kHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 8-PowerSOIC (0.154", 3.90mm wide)

Vendor Device Package: 8-SO-PowerPad

TPS54628DDAR Wide range of applications for low-voltage systems:

Digital TV power meter.

HD Blu-ray Disc™ Players

Networked Home Terminal Devices

Digital Set-Top Boxes (STBs)

The TPS54628DDAR (TI) synchronous buck converter is the preferred solution for solving medium-to-high power density power supply design challenges due to its outstanding efficiency, compact size, robust output capability and comprehensive protection features. For the latest stock information, specifications and price quotes for the TPS54628DDAR, please contact Mingjiada Electronics.
