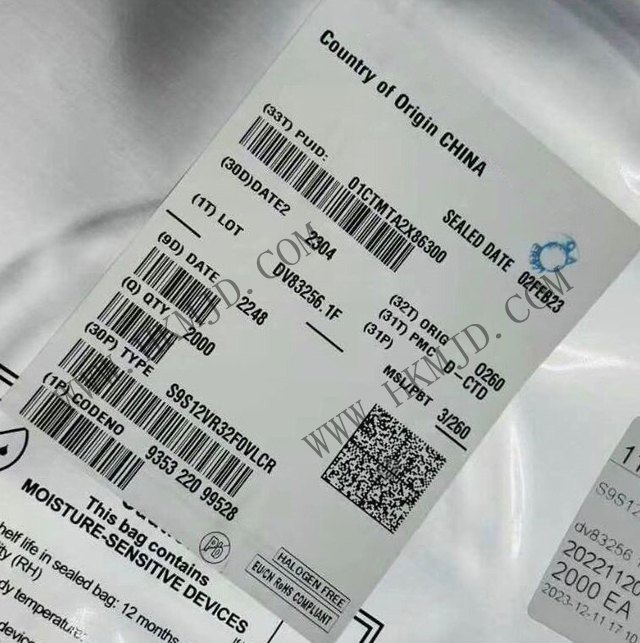

Mingjiada Electronics supplies NXP S9S12VR32F0VLCR mixed-signal MCU product overview

Product Overview

The S9S12VR32F0VLCR is a 16-bit mixed-signal MCU in NXP's S12VR series, packaged in an LQFP-48 package, specifically designed for automotive and industrial motor control applications based on relays. The chip integrates 32KB flash memory, 2KB RAM, and a rich set of analog peripherals, offering a cost-effective motor control solution.

Product Features

High-performance 16-bit core

25MHz HCS12 CPU supporting efficient motor control algorithms

32KB flash memory + 2KB RAM to meet embedded program storage requirements

Specialised motor control peripherals

6-channel PWM module supporting complementary output and dead-time control

16-bit ADC with 12 input channels for multi-channel motor current detection

Comparators and operational amplifiers with integrated signal conditioning functionality

Automotive-grade reliability

Compliant with AEC-Q100 standards, operating temperature range -40°C to 125°C

5V power supply with strong anti-interference capability

Watchdog timer for enhanced system stability

Rich communication interfaces

SCI, SPI, and I2C interfaces for system communication

CAN 2.0B interface for automotive networks

Typical applications

Automotive electronics: window lifters, sunroof control, seat adjustment

Industrial control: small motor drives, relay control

Home appliances: washing machine, refrigerator compressor control

Mingjiada Supply Advantages

Genuine product guarantee: NXP original factory channel, reliable quality

Bulk stock supply: LQFP-48 package always in stock

Flexible procurement model: supports multiple procurement methods

If you have procurement needs for the NXP S12VR mixed-signal MCU S9S12VR32F0VLCR, please contact Mr. Chen:
