Supply Original Op Amps, Supply NCV33202VDR2G (ON) High Output Drive Operational Amplifiers

Shenzhen Mingjiada Electronics Co., Ltd.—— Long term supply ON (NCV33202VDR2G) Operational Amplifier, here is the detailed description for this product:

Model No.: NCV33202VDR2G

Package: SOIC-8

Type: operational amplifier

Product Diagram:

The NCV33202VDR2G operational amplifiers (op amps) enable rail-to-rail operation at the input and output. The inputs can be driven high up to 200mV beyond the supply rails without phase reversal, and the outputs can swing within 50 mV of each rail.The NCV33202VDR2G is designed to operate at very low supply voltages (+/- 0.9 V), but can also be operated with supply and ground voltages up to +12 V. The NCV33202VDR2G is designed to operate at very low supply voltages (+/- 0.9 V), but can also operate with supply and ground voltages up to +12 V.

NCV33202VDR2G Specifications:

Amplifier Type: Standard

Number of Circuits: 2

Output Type: Full Swing

Voltage Slew Rate: 1V/µs

Gain Bandwidth Product: 2.2 MHz

Current - Input Bias: 80 nA

Voltage - Input Compensation: 8 mV

Current - Supply: 900µA (x2 Channels)

Current - Outputs/Channels: 80 mA

Voltage - Span (min): 1.8 V

Voltage - Span (Max): 12 V

Operating Temperature: -55°C ~ 125°C

Mounting Type: Surface Mount

Package/Case: 8-SOIC (0.154", 3.90mm wide)

Supplier Device Package: 8-SOIC

NCV33202VDR2G Product Features:

Low-voltage, single-supply operation (+1.8 V and ground to +12 V and ground)

Input voltage range includes both supply rails

Output voltage swing is within 50 mV of both supply rails

Outputs are not phase inverted due to overdriving of input signals

High output current (ISC = 80 mA, typical)

Low supply current (IDC = 0.9 mA, typical)

600 W output drive capability

Extended operating temperature range (-40° to +105°C and -55°C to +125°C

Typical gain bandwidth Product = 2.2 MHz

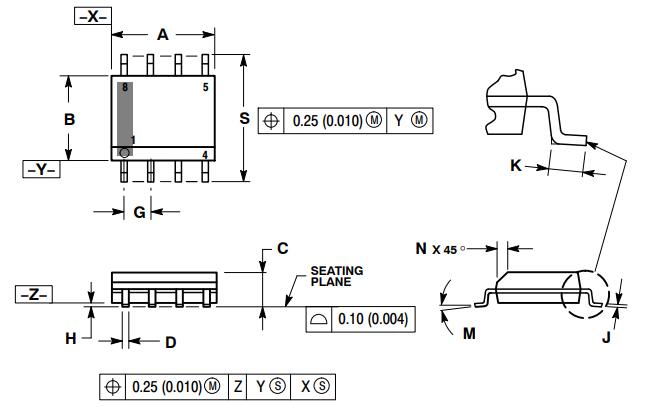

NCV33202VDR2G - Package Dimensions:

[Mingjiada Electronics] is a supplier of NCV33202VDR2G for a long time. For more product information about Amplifier LMV7275MG or to inquire about pricing, please contact Mingjiada Electronics at :
