[Supply TI Chips] TPS560430YFQDBVRQ1 SIMPLE SWITCHER® Synchronous Step-Down Converter

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of TI (TPS560430YFQDBVRQ1) easy-to-use wide VIN synchronous buck converter, the device is capable of driving load currents up to 600mA, with built-in protections, such as cycle-by-cycle current limiting, intermittent mode short circuit protection, and thermal shutdown in case of excessive power loss. The devices feature built-in protections such as cycle-by-cycle current limit, interrupt mode short-circuit protection, and thermal shutdown in the event of excessive power loss.

Model No.: TPS560430YFQDBVRQ1

Package: SOT-23-6

Type: Synchronous Buck Converter

Product Details: TPS560430YFQDBVRQ1 - Automotive approved SIMPLE SWITCHER® 4V to 36V, 600mA synchronous buck converter.

Product Diagram:

TPS560430YFQDBVRQ1 Specifications:

Function: Buck

Output Configuration: Positive

Topology: Buck

Output type: adjustable

Number of outputs: 1

Voltage - Input (Min): 4V

Voltage - Input (Max): 36V

Voltage - Output (Min/Fixed): 1V

Voltage - Output (Max): 36V

Current - Output: 600mA

Frequency - Switch: 2.1MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Housing: SOT-23-6

Supplier Device Package: SOT-23-6

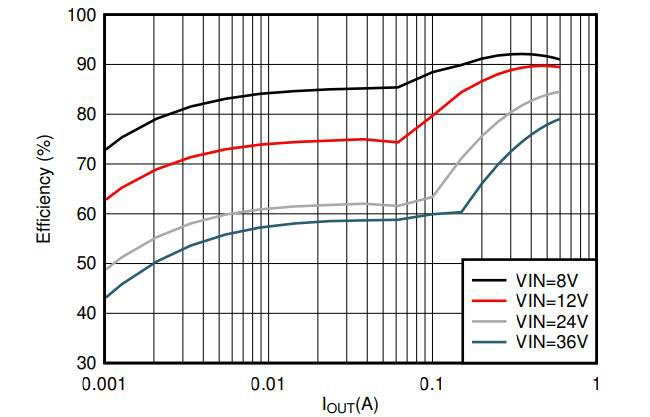

TPS560430YFQDBVRQ1 Efficiency vs. Output Current (VOUT = 5V, 2100kHz, PFM)

【Mingjiada Electronics】Long-term supply of TI (TPS560430YFQDBVRQ1) 600mA, synchronous buck converter, the company's electronic strict control of the supply chain, to ensure product quality, and support for small samples and high-volume purchases, and rely on efficient logistics system. For more information about TPS560430YFQDBVRQ1 or to get a quote, please visit the official website of Mingjiada Electronics (www.hkmjd.com).
