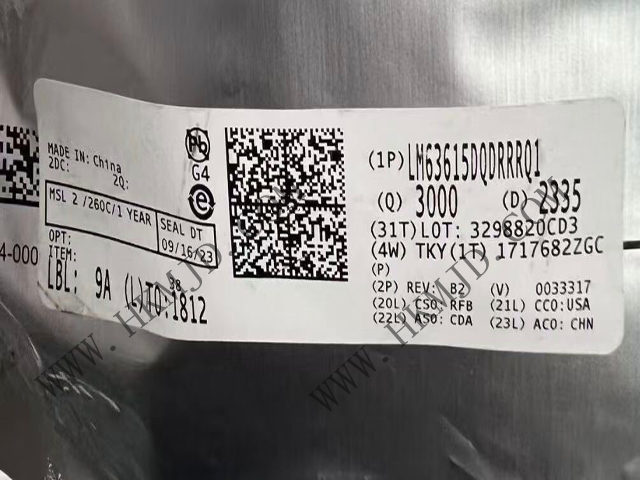

Mingjiada Electronics, as a professional supplier of electronic components, offers genuine LM63615DQDRRRQ1 products in stock.

The LM63615DQDRRRQ1 from Texas Instruments (TI) is a high-performance synchronous buck converter specifically designed for automotive applications, featuring spread spectrum functionality, and suitable for demanding power management requirements.

Product Overview

The LM63615DQDRRRQ1 is a 3.5V to 36V input, 1.5A output DC/DC buck converter featuring a synchronous rectification architecture, offering high efficiency, low EMI, and a compact size. Its key features include:

Wide input voltage range (3.5V–36V), suitable for automotive battery systems (12V/24V) and industrial power applications.

Integrated spread spectrum modulation to reduce EMI interference, compliant with CISPR 25 standards.

High flexibility, supporting pin-selectable output voltage (3.3V, 5V, or adjustable 1V–20V) and switching frequency (400kHz, 2.1MHz, or adjustable 250kHz–2.2MHz).

Low quiescent current (23µA) for improved light-load efficiency.

Key Features

Automotive-grade certification:

Compliant with AEC-Q100 Grade 1 standards, operating temperature range -40°C to +125°C (ambient temperature), junction temperature up to 150°C.

Provides functional safety documentation, supporting automotive safety standards such as ISO 26262.

Efficient power management:

Synchronous rectification, improving conversion efficiency (up to 95%).

Automatic frequency foldback, optimising light load efficiency.

Protection features: Thermal shutdown, input under-voltage lockout (UVLO), cycle-by-cycle current limit, and intermittent short-circuit protection.

Package options: WSON-12 (3mm × 3mm), suitable for space-constrained automotive electronic designs.

Pin-compatible with LM63610 (1A) and LM63635 (3.25A), facilitating design upgrades or downgrades.

Technical specifications

Input voltage range: 3.5V to 36V

Output current: 1.5A

Output voltage: 3.3V, 5V, adjustable from 1V to 20V

Switching frequency: 250kHz to 2.2MHz

Package type: WSON-12

Operating temperature range: -40°C to +125°C (ambient temperature)

Junction Temperature Range: -40°C to +150°C

Quiescent Current: 23µA (active state), 3µA (off state)

Minimum On-Time: 50ns

Compliant with AEC-Q100 standards, suitable for automotive applications

Excellent EMI performance, pseudo-random spread spectrum compliant with CISPR 25 standards

Typical Applications

Automotive infotainment systems (central control screens, instrument panels).

ADAS (Advanced Driver Assistance Systems) and Body Electronics (lighting, motor control).

Industrial Power Management (12V/24V input conversion).

The LM63615DQDRRRQ1 has a wide range of applications in the automotive electronics field, such as in-vehicle infotainment systems, body control systems, and Advanced Driver Assistance Systems (ADAS). Its high performance and reliability make it an ideal choice for automotive power management.
