TDK ICM-20602: 6-axis MEMS Motion Tracking™ Device | Suitable for IoT/Wearables/Drones

TDK ICM-20602: 6-axis MEMS Motion Tracking™ Device | Suitable for IoT/Wearables/Drones

Source:our siteTime:2025-06-03Views:

Shenzhen Mingjiada Electronics Co., Ltd. — In-stock supply of TDK ICM-20602: High-performance 6-axis MEMS MotionTracking™ deviceThe ICM-20602 is a 6-axis MotionTracking device that integrates a 3-axis gyroscope and a 3-axis accelerometer, housed in …

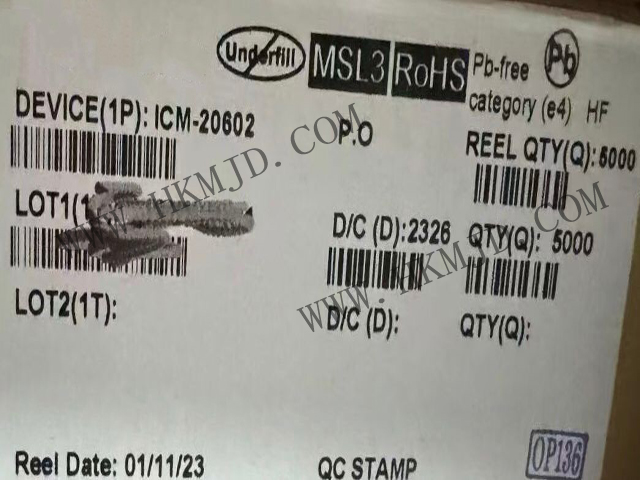

Shenzhen Mingjiada Electronics Co., Ltd. — In-stock supply of TDK ICM-20602: High-performance 6-axis MEMS MotionTracking™ device


The ICM-20602 is a 6-axis MotionTracking device that integrates a 3-axis gyroscope and a 3-axis accelerometer, housed in a compact 3 × 3 × 0.75 mm (16-pin LGA) package.


High-performance specifications

Gyroscope sensitivity error: ±1%

Gyroscope noise: ±4 mdps/√Hz

Accelerometer noise: 100 µg/√Hz

Built-in 1 KB FIFO to reduce serial bus interface traffic and lower power consumption by allowing the system processor to enter low-power mode after batch-reading sensor data

Supports EIS FSYNC


ICM-20602 integrates an on-chip 16-bit ADC, programmable digital filter, embedded temperature sensor, and programmable interrupts. The device supports an operating voltage range as low as 1.71V. Communication interfaces include I²C and 10MHz high-speed SPI.


Target Markets (ICM-20602)

Smartphones and tablets

Robotics (cleaning robots, lawn mowing robots, educational applications, etc.)

Sports

Electric scooters

Wearable sensors

Virtual reality headsets and controllers

IoT applications


Mingjiada Electronics Supply Advantages

Stock availability: Supports orders starting from 1 piece.

Original manufacturer channel: Guarantees genuine products.

Fast delivery: Domestic shipments within 24 hours, overseas deliveries within 2-4 weeks.


For ICM-20602, please contact Mingjiada Electronics:

Phone: +86 13410018555 (Mr. Chen)

Email: sales@hkmjd.com

Homepage: www.hkmjd.com
