MPL115A2ST1 MPL115A: 50 to 115kPa, absolute pressure, digital pressure sensor
OverviewThe MPL115A is a simple barometer with a digital output for low cost applications. It uses a MEMS pressure sensor with a regulating integrated circuit to provide accurate pressure data. The MPL115A has an integrated analog-to-digital converter…
Overview

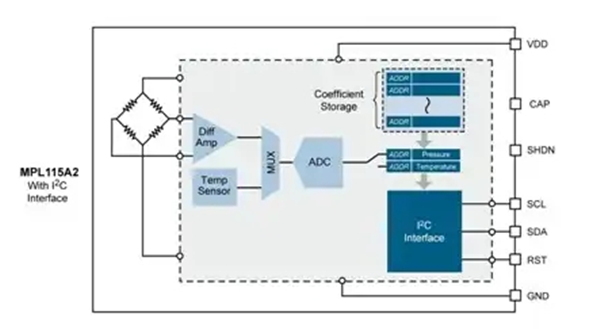

The MPL115A is a simple barometer with a digital output for low cost applications. It uses a MEMS pressure sensor with a regulating integrated circuit to provide accurate pressure data. The MPL115A has an integrated analog-to-digital converter (ADC) that provides digital temperature and pressure sensor output via a serial peripheral interface (SPI) (MPL115A1) or I²C (MPL115A2) port. The calibration data is stored on the onboard ROM and is used by the master microcontroller to compensate the original sensor data and can be accessed at any time. Calibration data is typically obtained when the sensor is first enabled by the primary microcontroller.
The MPL115A2 operates as an I²C target device with bus rates up to 400 Kbps (fast mode). Both versions are available in a maximum LGA package of 5.0 mm x 3.0 mm x 1.2 mm with a specified operating temperature range of -40ºC to 105ºC. All packages are surface mount, RoHS compliant.
Device: MPL115A2ST1
Type: Pressure sensor
Package: TSON8
Feature
Digitized pressure and temperature information plus set calibration coefficients are used by the master microcontroller.
Factory calibration
Absolute pressure in the range 50 kPa to 115 kPa
Accurate to 1 kPa
2.375 to 5.5v supply voltage
Integrated ADC
SPI or I²C interface
Monotonic pressure and temperature data output
The package is surface mount and complies with RoHS specification
Shenzhen Mingjiada Electronics Co., LTD. (Supply and recovery) MPL115A2ST1 Absolute digital pressure sensor (50-115 kPa).
Contact: Mr. Chen
Tel: +8613410018555
Email: sales@hkmjd.com
Website: www.hkmjd.com
