Overview

Murata has developed the smallest LoRa module in the world today, measuring only 10.0mm x 8.0mm x 1.6mm. Suitable for a variety of high-capacity applications requiring small size, long battery life, long battery life, safety and competitive pricing.

The Type 1SJ (LBAA0QB1SJ-686) module is one of the smallest LoRaWAN modules in the industry, with major areas already certified by radio law. The module is equipped with US915, EU868 and AS923 band modem software and can be operated by AT command.

Powered by a single feed rail (up to 3.9V DC), the 1SJ-686 module integrates multiple low-power modes that allow the Real-Time clock (RTC) to operate while consuming only 1.3A typical current.

The new Type 1SJ LoRa module will help designers develop solutions that meet the most demanding requirements, especially in areas such as asset tracking, utilities, agriculture, smart cities, smart buildings, industrial and other iot applications.

Detailed parameter

Product type: Module

Model :LBAA0QB1SJ-686

LoRaWAN channel frequency :US915, EU868, AS923

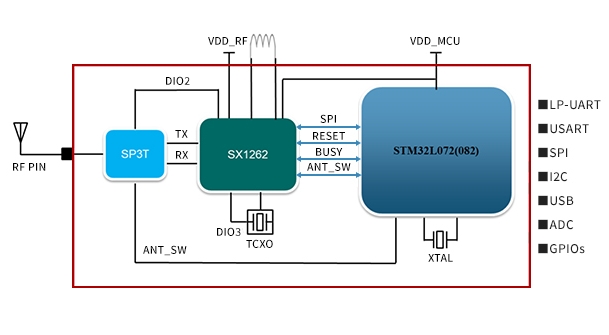

Chipset :SEM tech (sx 1262) +STM (STM 32 l)

Modulation :LoRa modulation

Antenna: external

Operating temperature range :-40°C ~ 85°C

Size: 10.0mm × 8.0mm × 1.6mm

Interface voltage (VIO's DC voltage) :3.3V

Minimum supply voltage :2.2V

Max supply voltage :3.6V

Transmit mode current: 118mA@22dBm setting

Transmit power: up to +21.5dBm

Receiving mode current: 15.5mA at 125kHz bandwidth

Receiver sensitivity :135.5dBm, 1% PER, 125kHz bandwidth, SF=12

Host interface :UART

RoHS compliant: Yes

Technology :LPWA

FCC/IC Certification :FCC/IC "Reference" certification

Shenzhen Mingjiada Electronics Co., LTD. (Supply and recycling) small size, 1SJ type (LBAA0QB1SJ-686) LoRaWAN module.

If interested, please contact Mr. Chen:

Tel: +8613410018555

Email: sales@hkmjd.com

Official website: www.hkmjd.com
